Product Details:
|
| Product Name: | Nitride Machined Metal Parts | Material: | 4Cr5MoSiV1 Or H13 |
|---|---|---|---|
| Original Hardness: | HRC48~52 | Tolerance: | ±0.02mm |
| Machining Type: | Milling, Grinding, Wire Cutting | Quality Inspection: | 100% Inspection |
| Applications: | Motor Industry, Mold Industry, Automotive Industry, | Service: | ODM, OEM |
| High Light: | Nitride Machined Metal Parts,Multipurpose Machined Metal Parts,0.02mm Metal Parts Machining |
||

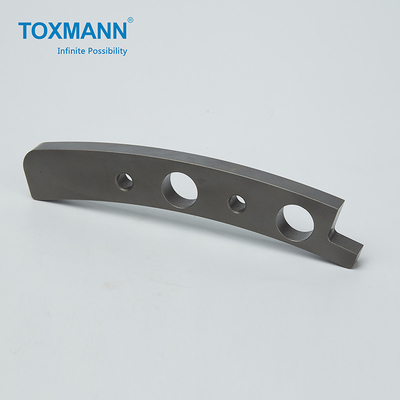

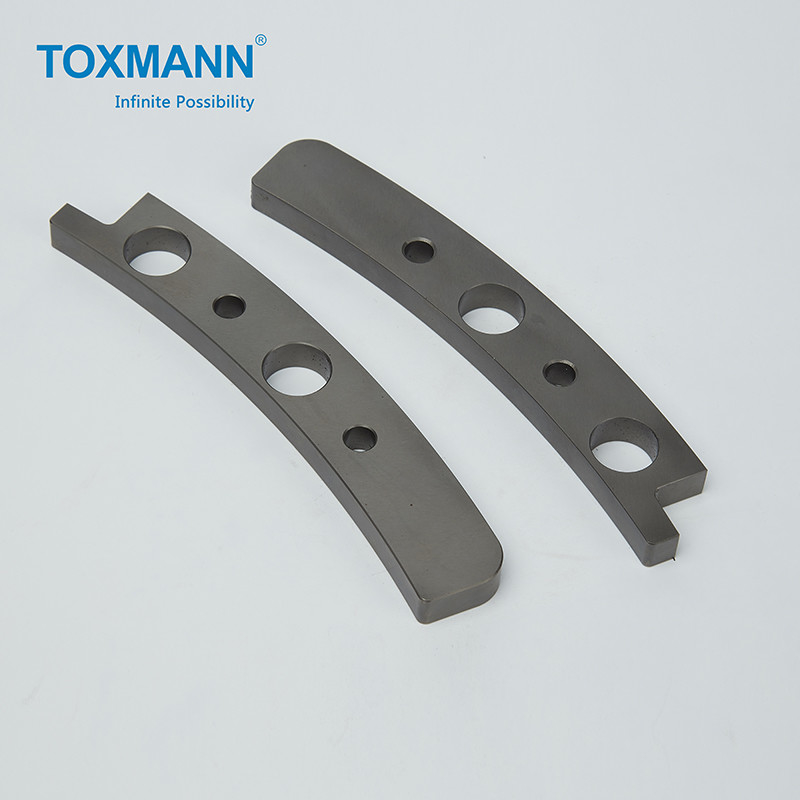

Nitride Treatment Machined Metal Parts Precision Mechanical Parts Die Steel
Processing & Inspection Machine List.pdf
Nitride treatment refers to a chemical heat treatment process that causes nitrogen atoms into the surface layer of the workpiece at a certain temperature at a certain temperature. Moisturizing products have excellent abrasion resistance, fatigue, corrosion resistance and high temperature resistance.
The aluminum, chromium, sink and molybdenum in the traditional alloy steel are very helpful for nitrogen exudation. In the nitrogen seepage temperature, these elements are in contact with the first ecological nitrogen atoms, and the stable nitrogen is generated. In particular, molybdenum elements are not only used as a nitride -generated element, but also as crispy to reduce the time when nitrating temperature. Elements in other alloy steels, such as nickel, copper, silicon, manganese, etc., are not helpful for the nitrogen seepage characteristics. Generally speaking, if the steel contains one or more nitrogen -generated elements, the effect of nitride is relatively good. Among them, aluminum is the strongest nitride element, which contains 0.85 to 1.5%of aluminum nitrogen seepage results. In terms of chromium -containing chromium steel, if there is enough content, it can also get good results. However, carbon steel containing alloys is very crispy because of its generated nitrogen seepage layer, easy to peel off, and is not suitable for nitrogen seepage steel.
|
Manufacturer |
Toxmann High- Tech Co., Limited |
|
Product Name |
Nitride Machined Metal Part |
|
Industry Standards |
DIN, JIS, AISI, GB |
|
Polishness |
RA0.8 |
|
Material |
4Cr5MoSiV1 or H13 |
|
Surface Treatment |
Nitrogen Treatment |
|
Quality Control |
Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element |
|
Processing Machines |
CNC Machine Center, Surface Grinder, Wire-Cutting Machine |
|
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples, Make to Order. |
|
Platness Tolerance |
±0.01mm |
Pros of Toxmann Machined Metal Parts:
1. Using high-end machines to process to meet accuracy.
2. Integrated inspection instruments to guarantee quality before shipping.
3. Raw materials and heat treatment are provided by best manufacturers, such as ASSAB, TOKAI, etc.
4. Most competitive price for each order.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
Our Quality and Lead Time Objectives:
1. Sample acceptable rate reaches to 100%
2. The qualified rate of finished products reaches to 100%
3. Delivery on time rate reaches to 100%
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
FAQ:
Q1: What is nitriding hardening?
A: Gas nitriding is a surface hardening process, where nitrogen is added to the surface of steel parts using dissociated ammonia as the source. Gas nitriding develops a very hard case in a component at relatively low temperature, without the need for quenching.
Q2: How hard is nitride coating?
A: The metallic nitrides are hard and enhance the wear resistance of the surface. This is a well-known process in the heat treatment of steel parts to improve their wear and fatigue resistance. The hardness of the nitrided layer reaches up to 65 Rockwell Hardness (RC) while the substrate hardness is usually around 45 RC.
Q3: Is nitriding a coating?
A: Liquid Nitriding is not a coating or plating: it is a diffusion process that modifies/transforms the surface of the treated component. This modified surface layer is well integrated with the bulk material – hence it is not susceptible to flaking or peeling.
Q4: What materials can be nitrided?
A: What materials can be used for nitride? Alloy steels, carbon steels, cast irons, tool steels, stainless steels, inconel and titanium.
Q5: What is necessary before the nitriding process?
A: Explanation: Before nitriding is carried out, it is required that the workpieces are heat treated. This is done in order to produce the required properties in the core. The parts are heat treated at just about 500oC for several hours.
Q6: What are the applications of nitriding?
A: Typical applications for nitriding include gears, cranks and camshafts, cam followers, valve parts, plastic injection molding screws and dies, die casting tools, forging dies, extrusion dies, injectors, and firearm components.
