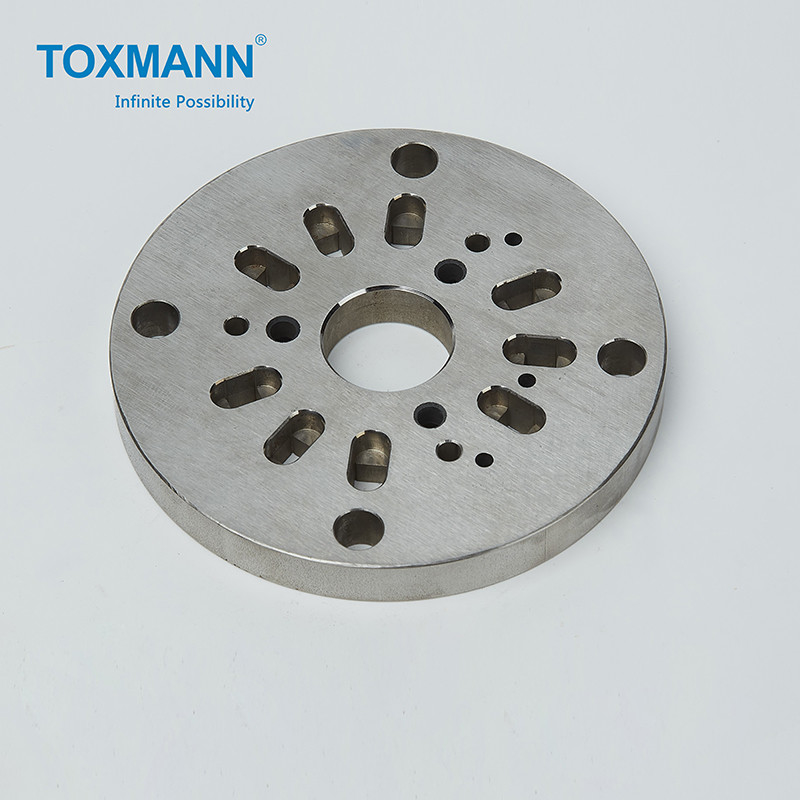

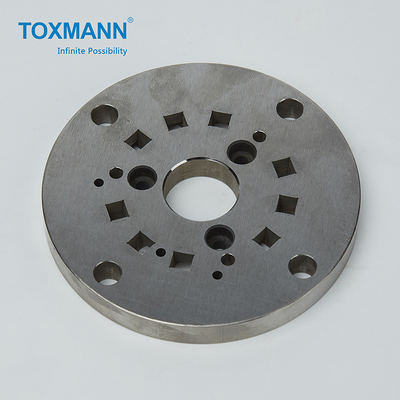

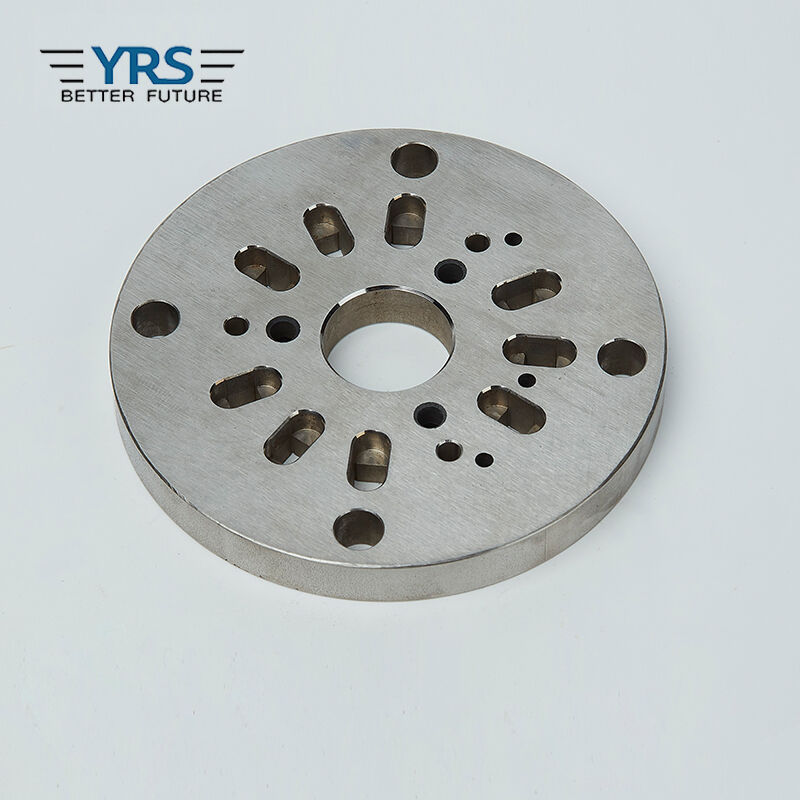

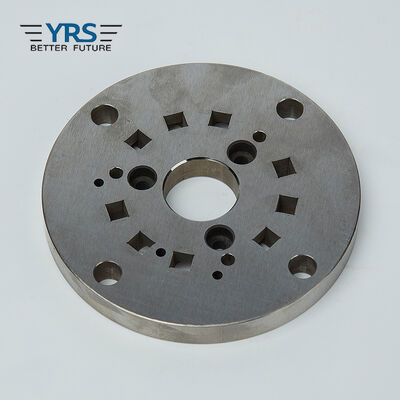

DC53 Precision Machined Metal Parts HRC58-62 Tolerance 0.01mm

DC53 Precision Machined Metal Parts HRC58-62 Tolerance 0.01mm
DC53 Precision Machined Metal Parts HRC58-62 Tolerance 0.01mm DC53 Precision Machined Metal Parts HRC58-62 Tolerance 0.01mm

Large Image :  DC53 Precision Machined Metal Parts HRC58-62 Tolerance 0.01mm

Product Details:
Place of Origin: China
Brand Name: Toxmann
Certification: ISO9001
Model Number: Toxmann-140
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil and packed with carton box
Delivery Time: 10~15 working days
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 2,000 pcs/ week

DC53 Precision Machined Metal Parts HRC58-62 Tolerance 0.01mm

Description
Product Name: Machined Metal Part Material: DC53
Hardness: HRC 58~62 Tolerance: ±0.01mm
Dimension: According To Drawings Or Samples Quality: 100% Inspection
Applications: Automation Industry, Stamping Mold Processing Machine: Turning Machine, Wire-Cutting Machine, Surface Grinding Machine
High Light:

DC53 Machined Metal Parts

,

HRC58 Machined Metal Parts

,

0.01mm Precision Machining Metal Parts

DC53 Material Precision Mechanical Parts Machined Metal Parts Wire-Cutting Parts



Company Profile-Toxmann.pdf



Processing & Inspection Machine List.pdf



Slow wire-cutting machine, uses continuously moving thin metal wires (called electrode wires, usually copper wires) as electrodes to perform pulse spark discharge on the workpiece, generating a high temperature of more than 6000 degrees, eroding metal, cutting A CNC machine tool for forming workpieces. The principle of slow wire cutting processing is the phenomenon that there is a gap between the wire electrode and the workpiece, and the metal is removed by continuous discharge.


The surface roughness of the workpiece processed by the slow wire-cutting machine can reach Ra=0.8μm and above, and the roundness error, straight line error and dimensional error of the slow wire cutting machine are much better than those of the fast-moving wire cutting machine. When it comes to high-precision parts, slow wire-cutting machines are widely used in the industrial field.



Product Information:

Manufacturer

 Toxmann High- Tech Co., Limited

Product Name

 Machined Metal Part

Industry Standards

 DIN, JIS, AISI, GB

Design Tools

 UG, ProE, Auto CAD, Solidworks, etc

Material

 DC53

Hardness

 HRC58~62

Quality Control

 Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element

Processing Machines

 Turning Machine, Wire-Cutting Machine, Precision Surface Grinder

Surface Treatment  Nickel Plating

Other Service

 ODM and OEM, Customized Specification, One to One Communication,   Free Samples

Order Process

 Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides   quotes and lead time→ Orders released by customer→ 50% advanced

 payment→ Arrange production→ QC pass→ Packing and shipping after   receiving balance payment.



Toxmann Wire-Cutting Machines and Mirror Spark Machines:

Toxmann EDM

Brands  SEIBU, SODICK
Accuracy Class  ±0.002mm, RA0.8
Total Number  WEDM:22
 EDM: 8
Features  1.High accuracy on processing.
 2.Perfect surface finish



Pros of Toxmann Machined Metal Parts:

1. Using high-end machines to process to meet accuracy.

2. Integrated inspection instruments to guarantee quality before shipping.

3. Raw materials and heat treatment are provided by best manufacturers, such as ASSAB, TOKAI, etc.

4. Most competitive price for each order.



Core Value and Company Culture:

Business Philosophy:

1. Quality is the soul of an enterprise.

2. Competitive price is our advantage.

3. Enthusiastic service is our tenet.

4. Innovation is our eternal pursuit



Quality Objectives:

1. Sample acceptance rate reaches 100%.

2. The qualified rate of finished products reaches 100%

3. Punctual delivery rate reaches 100%



Our Mission:

1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.

2. Enhance innovation capacity and contribute to sustainable development.



Why Choose Us?

1. Best product quality and most competitive price.

2. Experienced technicians are in production.

3. High-end processing machines and inspection instruments.

4. Customized designs and production.

5. Excellent pre-sale and after-sale service.



Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.



FAQ:

Q1: What are the types of EDM process?
A: Electric discharge machining can be divided into three common types, Die sinking EDM, Wire EDM and hole drilling EDM.
Die sinking EDM.
Wire EDM.
Hole drilling EDM.


Q2: What does EDM stand for in machining?
A: Electrical discharge machining (EDM), also known as spark machining, spark eroding, die sinking, wire burning or wire erosion, is a metal fabrication process whereby a desired shape is obtained by using electrical discharges.


Q3: Which material is used for EDM process?
A: Electrodes that are generally used in EDM process are copper, graphite, copper tungsten, silver tungsten, tungsten carbide, brass.


Q4: What is application of EDM?
A: The EDM process is most widely used by the mold-making, tool, and die industries, but is becoming a common method of making prototype and production parts, especially in the aerospace, automobile and electronics industries in which production quantities are relatively low.


Q5: What are the advantages of EDM?
A: Creates complex shapes that would otherwise be difficult to produce with conventional cutting tools. Cuts extremely hard, challenging and exotic materials to very close tolerances for high precision mechanical components.


Q6: What is the difference between EDM and wire EDM?
A: Conventional EDM cannot produce narrower angles or more complex patterns, while wire-cut EDM can be performed. A more precise cutting process allows for more complex cuts. The wire EDM machine is capable of cutting a metal thickness of about 0.004 inches.
