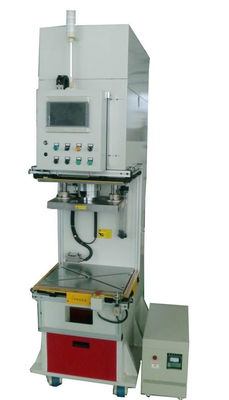

C Model Type 100KN Vertical Servo Press Machine Block Into Vulcanized Parts Assembly

• Precision control function.

• Job process control function

• Online quality control functions

• Automatic precision compensation function.

• One machine with multiple functions.

• Ethernet, PC communication, I/O functions.

• Job data retrieval function

Networking and Communication Functions:

1. ^{TOXMANN Servo Press Machine connects to a computer and uses dedicated Windows software for sampling and job data management.}

2. ^{TOXMANN Servo Press Machine is equipped with Ethernet line ports that allow multiple servo press units to exchange data over line.}

Specification Parameter:

Energy-saving Characteristics:

Servo press has excellent motion characteristics, its energy consumption is mainly in the press stroke, compared with the pneumatic press and oil press energy-saving characteristics, energy saving up to 80%-90%. In addition, because there is no oil/steam emissions when the electronic press works, there is no impact noise, which greatly improves the working environment and reduces the expenditure on improving the environment, therefore, the use of servo presses greatly reduces the operating costs of enterprises.

• Servo Press Machine selection of high-quality parts, the depreciation period is 2-3 times that of air pressure, hydraulic press.

Reasons for Choosing TOXMANN:

<sup>1. Online quality testing to meet the whole process of quality control and data management.
2. Set the pressure stop control mode, that is, ensure the consistency of the connecting rod ball riveting quality.
It can also determine whether the interference fit size of each workpiece is qualified.
3. The precise position of the press assembly is guaranteed, and the function of pressure-displacement curve is used to realize online quality monitoring.</sup>

Technical Data Requirements for Clients:

• 2D and 3D parts drawings and assembly drawings of customers' products.
• Product assembly process requirements.
• Sample of the product.
• Understand the customer's expectations for the equipment (four-column or C-type), the equipment tonnage size, stroke size and throat depth opening size.
• Understand the working conditions of the customer site in detail, know the existing assembly process of the customer's products, it is best to take photos or videos, which can provide a good reference for the designer and greatly improve the work efficiency.
• Customer's communication requirements.
• Requirements and safety specifications for certain standard parts brands.
