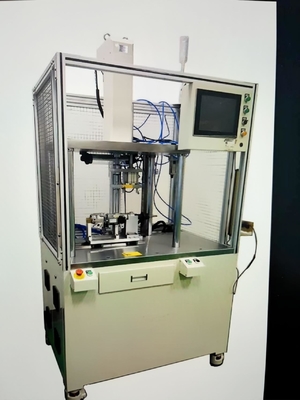

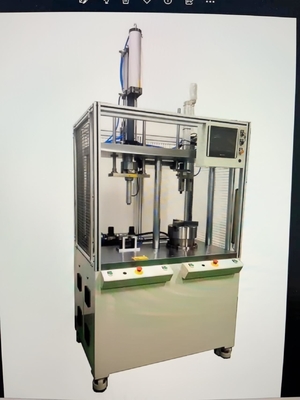

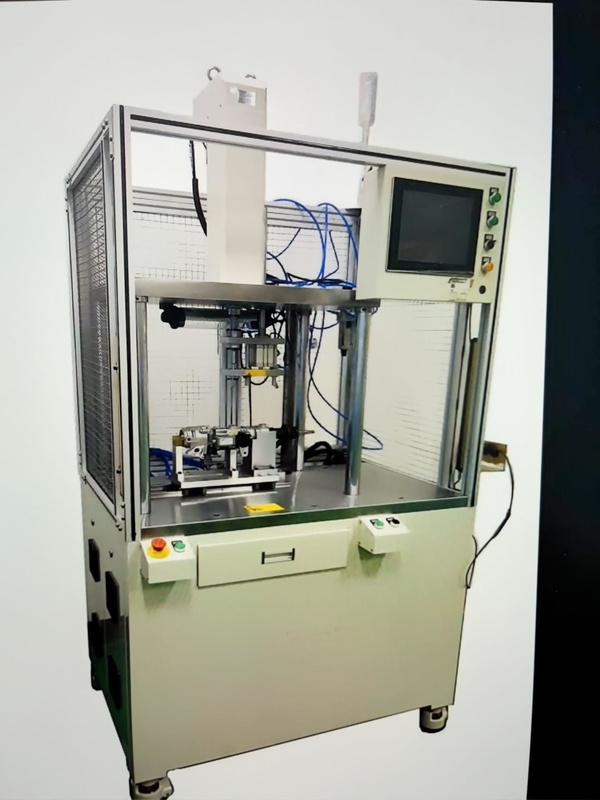

Precision Servo Press Machine Quality Monitoring Multiple Functions Auto Industry


^{Precision control function.
Job process control function
Online quality control functions
Automatic precision compensation function.
One machine with multiple functions.
Ethernet, PC communication, I/O functions.
Job data retrieval function}

TOXMANN Servo Press Machine External Port Interface:

<sup>1. Standard input/output ports (17 input, 16 output).
2. Expanded input/output ports (8 input, 8 output).
3. Encoder (position signal) output port.
4. PC Communication port (RS-232C D-sub 9pin).
5. Ethernet Group Port (LAN).
6. Adjust, configure, and maintain ports.
7. Security self-check system port.
8. Two-hand buttons activate the control box port.
9. Force sensor signal output port.
10. Power input port.</sup>



Specification Parameter:



Energy-saving Characteristics:

Servo press has excellent motion characteristics, its energy consumption is mainly in the press stroke, compared with the pneumatic press and oil press energy-saving characteristics, energy saving up to 80%-90%. In addition, because there is no oil/steam emissions when the electronic press works, there is no impact noise, which greatly improves the working environment and reduces the expenditure on improving the environment, therefore, the use of servo presses greatly reduces the operating costs of enterprises.




• Servo Press Machine selection of high-quality parts, the depreciation period is 2-3 times that of air pressure, hydraulic press.



Reasons for Choosing TOXMANN:

<sup>1. Online quality testing to meet the whole process of quality control and data management.
2. Set the pressure stop control mode, that is, ensure the consistency of the connecting rod ball riveting quality.
It can also determine whether the interference fit size between the bearing and the circlip is qualified.
3. The precise position of the press assembly is guaranteed, and the function of pressure-displacement curve is used to realize online quality monitoring.
4. Rich servo press design capabilities and excellent manufacturing capabilities.</sup>

Technical Data Requirements for Clients:

• ^{2D and 3D parts drawings and assembly drawings of customers' products.}

• ^{Product assembly process requirements.}

• ^{Sample of the product.}

• ^{Understand the customer's expectations for the equipment (four-column or C-type), the equipment tonnage size, stroke size and throat depth opening size.}

• ^{Understand the working conditions of the customer site in detail, know the existing assembly process of the customer's products, it is best to take photos or videos, which can provide a good reference for the designer and greatly improve the work efficiency.}

• ^{Customer's communication requirements.}

• ^{Requirements and safety specifications for certain standard parts brands.}
