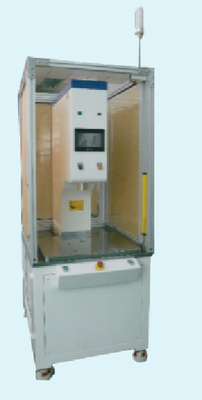

Pressure 2000KG Precision Motor Pressing Servo Press Machine Displacement Stroke From 100mm To 600mm

• ^{Precision control function.}

• ^{Job process control function}

• ^{Online quality control functions}

• ^{Automatic precision compensation function.}

• ^{One machine with multiple functions.}

• ^{Ethernet, PC communication, I/O functions.}

• ^{Job data retrieval function}


Specification Parameter:



Motion Characteristics and Control:

Basic mode: Speed, pressure, position and pressure holding time can be arbitrarily set within the rated range to meet the required pressing needs.
External control mode: The servo press machine can be controlled by external I/O.
Communication mode: With RS232, RS485, Profinet, Ethernet IP, Modbus and other communication functions

Main Structure- Servo Linear Actuator:

• Servo Linear Actuator built-in high-precision force sensor and servo encoder, pressure-displacement closed-loop control, can achieve accurate online control of the press assembly process.
• TOXMANN Servo Linear Actuators are compact and rugged, giving them a distinct advantage in tight space applications.
• TOXMANN Servo Linear Actuators can be customized according to the special requirements of customers, such as pressure, stroke length, speed, etc.
• TOXMANN Servo Press Machine control accuracy:
  • Displacement repetition accuracy: ±0.01mm.
  • Repeatability of pressing force: ±1% rated pressing.


Reasons for Choosing TOXMANN:

<sup>1. Advanced man-machine interface control system can realize program editing, simple and fast.
2. Through the force sensor and precision servo system, realize the stepless adjustable intelligent control of working pressure, working position and working speed.

3. Set the position stop control mode, which not only ensures the consistency of product pressing, but also determines whether the interference fit size between the motor and the workpiece is qualified after pressing.</sup>


Technical Data Requirements for Clients:


• 2D and 3D parts drawings and assembly drawings of customers' products.
• Product assembly process requirements.
• Sample of the product.
• Understand the customer's expectations for the equipment (four-column or C-type), the equipment tonnage size, stroke size and throat depth opening size.
• Understand the working conditions of the customer site in detail, know the existing assembly process of the customer's products, it is best to take photos or videos, which can provide a good reference for the designer and greatly improve the work efficiency.
• Customer's communication requirements.
• Requirements and safety specifications for certain standard parts brands.
