Product Details:
|
Power Source: | Electric | Weight: | 400 Kg |
---|---|---|---|
Repeatability: | ±0.01 | Usage: | Precision Pressing |
Repeat Accuracy: | ± 0.01 Mm | Stroke Length: | 200 Mm- 600mm |
Power Supply: | AC 380V/220V | Electronic: | AC220V-50HZ/380V-50HZ |
Capacity: | 500kg- 100tons | Operation Mode: | Manual/Automatic |
Type: | Mechanical Press | Meet Test Standard: | IEC, ASTM, MIL, ISO Etc |
Maximum Speed: | 100 Mm/s |

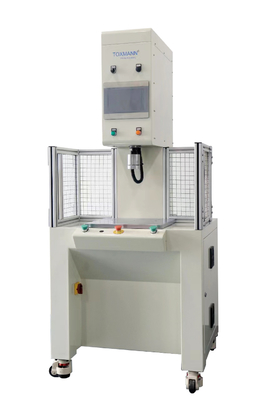

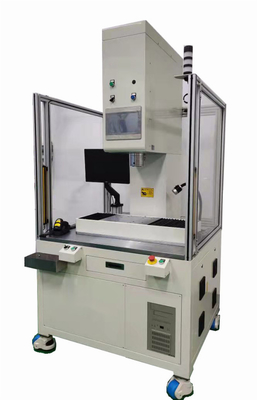

Pressure 500KG To 10 Ton Precision Servo Press Machine Displacement Stroke From 100mm To 600mm
Product Description:
Servo Press Machine, also known as electronic press machine, its technical principle is driven by AC servo motor precision ball screw output force, through the pressure-displacement online closed-loop control, to achieve precision assembly operations. Servo Press Machine: composed of servo linear actuator, integrated frame, workbench, button box, control system, safety light screen, etc., suitable for the work table requirements of wider, larger throat depth of single precision pressing occasions.
Built-in high precision force sensor and servo encoder accurately detect and control speed, pressure and position.
Precise control, flexibility and data recording function are the main characteristics of Servo Press Machine
Precision control function.
Job process control function
Online quality control functions
Automatic precision compensation function.
One machine with multiple functions.
Ethernet, PC communication, I/O functions.
Job data retrieval function
Specification Parameter:
Force Range | 0-1000 Kn |
Displacement range | 200/400 (mm) |
Position repetition accuracy | ±0.01 mm |
Pressure repetition accuracy | ±1% F.S |
Driving mode | AC servo motor drives 32-bit CPU |
Storage capacity | 100 sets of program storage functions are standard |
Motion Characteristics and Control:
Basic mode: Speed, pressure, position and pressure holding time can be arbitrarily set within the rated range to meet the required pressing needs.
External control mode: The servo press machine can be controlled by external I/O.
Communication mode: With RS232, RS485, Profinet, Ethernet IP, Modbus and other communication functions
Application Fields:
Application Scenario of Servo Press Machine:
Technical Data Requirements for Clients:
