Product Details:
|
| Product Name: | Grinding Machining Parts | Material: | SKD11 |
|---|---|---|---|
| Hardness: | HRC 58~60 | Tolerance: | ±0.005mm |
| Dimension: | According To Drawings Or Samples | Quality: | 100% Inspection |
| Applications: | Automation Industry, Automobile Industry, Home Appliance Industry | Processing Machines: | Milling Machine, Surface Grinder, Wire-Cutting Machine |
| High Light: | Automobile CNC Precision Mechanical Parts,SKH11 CNC Precision Mechanical Parts,Anti Corrosion Precision Mechanical Parts |
||

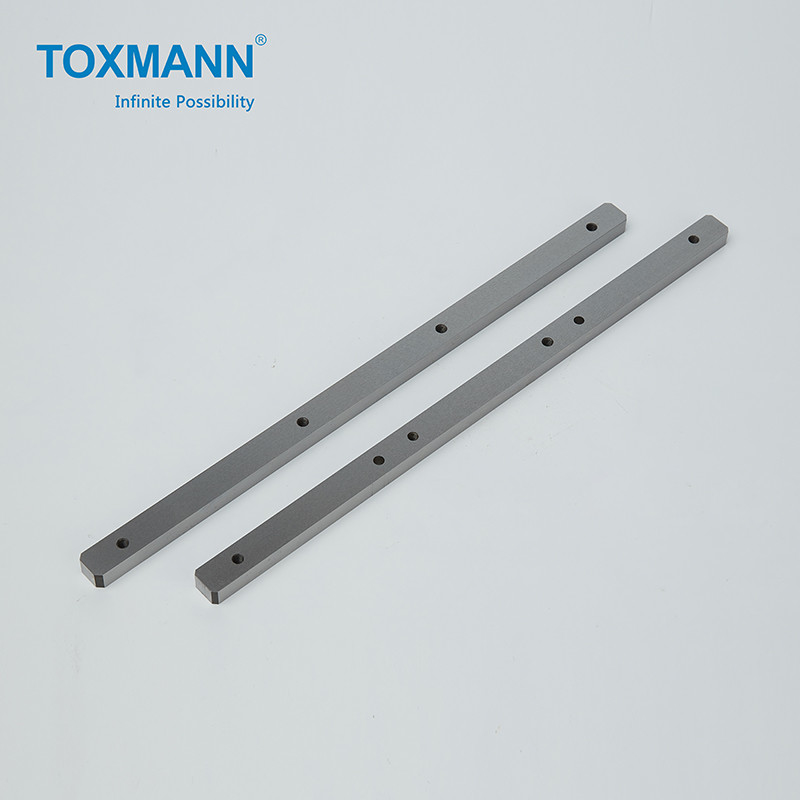

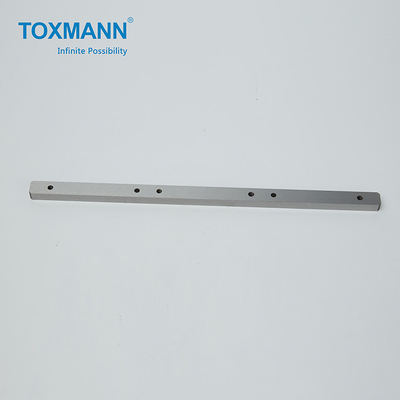

SKH11 Grinding Machining Part Precision Mechanical Components Bar Strip Parts
Processing & Inspection Machine List.pdf
The most critical dimension of this strip-shaped part is the parallelism of ±0.005mm. It is easy to deform during processing and cause the product to be scrapped. Our machining process is to use a milling machine for rough machining, and then vacuum heat treatment (leave enough allowance to deal with deformation during heat treatment). After the heat treatment is completed, aging treatment is performed. Next, we use a precision surface grinder to process the four planes to ensure that the dimensional tolerance, plane finish and parallelism requirements are met. Finally, we will use the wire cutting machine to process the fine hole shown in the figure. If the product needs surface treatment, we will conduct a full inspection of the product quality after the surface treatment.
Our most advanced and professional grinding machines are the guarantee of this precise parallelism. Here are our Grinders for your reference:
| Toxmann Grinders | |
| Brands | WAIDAI, WANPAN, HOUTMAN |
| Accuracy Class | PG: ±0.001mm, RA0.4 |
| Surface Grinder: ±0.005mm, RA0.8 | |
| NC and OD Grinder: ±0.001mm, RA0.4 | |
| Total Number | 21 |
| Features | 1. High machining accuracy and stable quality on processing. |
| 2. Suitable for the processing of complex and shaped parts. | |
| 3. Facilitate mass production. | |
Product Information:
|
Manufacturer |
Toxmann High- Tech Co., Limited |
|
Product Name |
Grinding Machining Parts |
|
Industry Standards |
DIN, JIS, AISI, GB |
|
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
|
Material |
SKH11 |
|
Hardness |
HRC58~60 |
| Surface Roughness | RA0.8 |
| Parallelism | ±0.005mm |
|
Quality Control |
Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element |
|
Processing Machines |
Precision Surface Grinder, Milling Machine, Wire-Cutting Machine |
| Surface Treatment | Nickel Plated or Customized |
|
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples |
|
Order Process |
Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production→ QC pass→ Packing and shipping after receiving balance payment. |
Pros of Toxmann Machined Parts:
1. Using high-end machines to process to meet accuracy.
2. Integrated inspection instruments to guarantee quality before shipping.
3. Raw materials and heat treatment are provided by best manufacturers, such as ASSAB, TOKAI, etc.
4. Most competitive price for each order.
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
FAQ:
Q1: What is the principle of grinding?
A: The principle of grinding precision machining: Grinding is an abrasive precision machining method that uses a lapping tool and abrasive to grind off a thin layer of metal from the surface of the workpiece based on fine machining.
What are the advantages of grinding process?
Q2: Advantages and disadvantages of grinding machines?
A: High surface finish and accuracy are produced.
Ability to machine hard material.
Less pressure can be applied to work.
Ability to work at high temperature.
Offers high accurate dimensions.
Ability to cut any type of metal at a speed rate.
It can produce a smooth surface.
Q3; What is the application of grinding?
A: Grinding is a cutting application that is designed to trim and shear away any unwanted sections of a material that will not be apart of the final product. For this reason, grinding generally gets categorized as part of a finishing process by removing material with abrasion.
Q4: What is the CNC grinding machine?
A: CNC grinding machines are machine tools which use a rotating grinding wheel to achieve material removal on a metallic workpiece by means of cutting. Grinding machines are mostly used for the hard-fine machining of workpieces (parts).
Q5: Is milling the same as grinding?
A: While they both involve the physical removal of material from a workpiece, milling and grinding aren't the same. The former machining process is characterized by the use of a milling machine, whereas the latter machining process is characterized by the use of a grinding wheel.
