Product Details:
|
Product Name: | Plastic Mold Part | Material: | 1.2379 Or Customized |
---|---|---|---|
Hardness: | HRC58-62 | Tolerance: | ±0.002mm |
Dimension: | Customized | Quality: | 100% Inspection |
Applications: | Injection Mold, Medical Industry, Cosmetics Industry. | Feature: | Durable |
High Light: | ISO9001 Plastic Injection Mold Parts,1.2379 Plastic Injection Mold Parts,SKD61 Plastic Mold Parts |

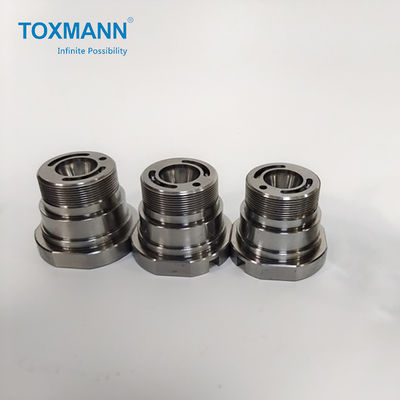

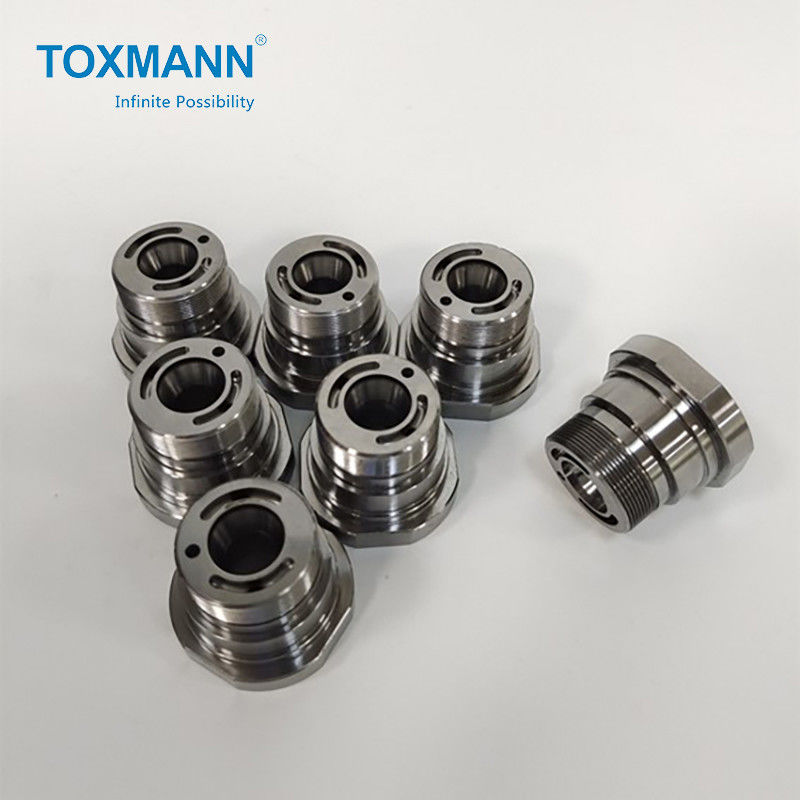

SKD61 Plastic Injection Mold Parts For Plastic Daily Packaging Tooling Parts
Processing & Inspection Machine List.pdf
Mold Core Insert Design
Design Mold Core Insert and cavity into inserts. In this way, it is convenient to replace the core and cavity. This Mold Core Insert form is adopted when producing a small quantity of injection molded products, or when there are higher requirements on the strength of Mold Core Insert and cavity
Design of shut-off and kiss-off inserts. During the mold design process, we will encounter some special holes that require the kiss-off or shut-off design. At this point of time, we need to use Mold Core Inserts. In the design of slider, inserts are often used to reduce machining difficulty and facilitate the replacement of wear parts, but such a design reduces the strength of the slider.Therefore, it is applicablein occasions when there are lowerrequirements on slider strength
Similarly, with regard to lifter design, if the mold is used more than a certain number of times, the molding part of the lifter is also easy to wear. then, to reduce cost and extend the service life ofthe mold, you can also consider using aninsert to solve the issue.
The venting design of a plastic injection mold is of great importance. to facilitate moldventing, you can also add an insert where venting is required. In a nutshell, the above-mentioned Mold Core Inserts are commonly used ones in the design process. In the actual design process of a plastic injection mold, the form of inserts varies a lot. However, while maintaining the desired application purpose, service life, and production cost of the mold, we can find the general design principles as follows:
1) Insert design should facilitate machining
2) The mold is easily vented
3) Mold insert design should help reduce costs and improve efficiency
Manufacturer |
Toxmann High- Tech Co., Limited |
Product Name |
Plastic mold part |
Design |
Customized or ideas from customers |
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
Material |
1.2379/ Hard alloy/ SKD61/ 1.2344 |
Dimension |
Customized or according to samples |
Quality Control |
Hardness tester, Caliper, Altimeter, CMM, Projector, 2.5D |
Machines/ Equipment |
CNC lathes, OD Grinder, EDM, CNC Milling |
Sample |
Sample available |
Order Process |
Customer inquiries (provide 2D or 3D drawing) → Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production → QC pass→ Packing and shipping after receiving balance payment. |
Specification Of Mold Core Insert:
1. We have rich experience and specialize in manufacturing mold parts and machined parts for over 13 years.
2. We have perfect technical team and precision machines, which ensure to provide best service and quality to customers.
3. Short lead time of samples to impove work efficiency.
4. Professional production team and strictly quality management to meet the requirement of capacity and quality.
5. Competitive quotation, excellent service, flexible trade terms.
6. Our philosophy: customers' satisfaction is our target.
Toxmann High- Tech Co., Limited is a professional OEM/ODM mold accessories and machine parts manufacturer. We provide mold design, mold manufacturing, injection/die-casting/stamping mold parts processing. We have a team with extensive quality control experience to help Toxmann meet customer requirements. High quality, competitive price, quick response are our core missions.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Packaging:
1. Toxmann packaging is based on the highest industry standard;
2. Each part is packed independently.
Delivery (Shipping):
1. Using DHL, UPS, Fedex, TNT, EMS and SF experss to deliver products to your destination.
2. Ship products to your nearest port by sea.
FAQ:
Q1. When can I get the price?
A : In general, We quote within 48 hours after we get your drawings or samples. If it is very urgent, please remind us to put your inquiry into priority.
Q2. How long is the lead time for mold parts and machined parts?
A : It depends on the quantity of the orders and process. Normally, the lead time is 10~15 days.
Q3. If there is no 3D and 2D drawings, how should I start the project?
A : You can provide us a physical sample and we will help finish the design of the product.
Q4. How to ensure product quality meet our requirement before shipping?
A : We have professional QC department to inspect all products before shipping and we can provide the quality inspect reports if you need. In addition, you can invite a third party to our factories for inspection.
Q5. How could I pay for the order?
A : Paypal, Western Union, T/T, L/C are acceptable, please let us know which one is convenient for you.
Q6. Can I get discounts?
A : Yes, we can give the biggest support for our customers, especially for the orders in large quantities.
Q7. Which shipment way is available?
A : By sea to your nearest port,
By air to your nearest airport.
By express (DHL, UPS, Fedex, TNT, SF, EMS) to your designated location.
