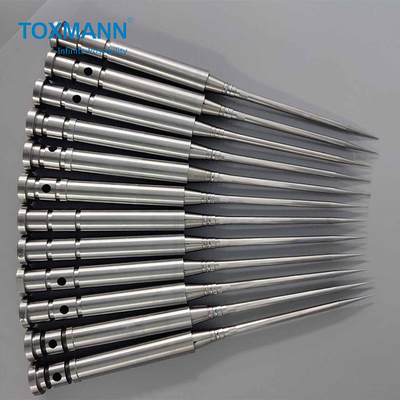

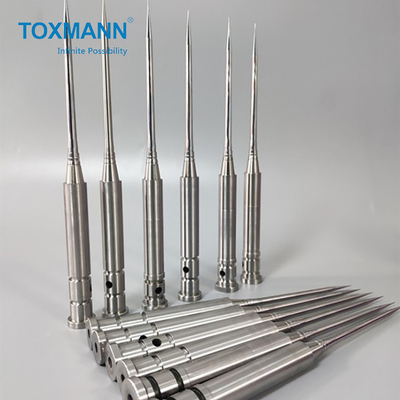

0.002mm Hardened SKD61 Mold Core Pins , Die Punch Pins For Medical Plastic Tools

Description
Product Name: Mold Core Pins Material: SKD61
Hardness: HRC48~52 Tolerance: ±0.005mm
Verticality: 0.005mm Applications: Plastic Injection Mold, Die-Casting Tools
Quality: 100% Inspection Surface Treatment: Polished, Tin, Ticn, Crn, Dlc
High Light:

0.002mm Mold Core Pins

,

Hardened Mold Core Pins

,

SKD61 Die Punch Pins

0.002mm Hardened SKD61 Mold Core Pins Die Punch Pins For Medical Plastic Tools



Company Profile-Toxmann.pdf



Processing & Inspection Machine List.pdf



Core pins are used primarily in the plastic molding and die casting applications. In most cases core pin are fixed in the plastic mold and are used to create a desired shape in the molded or cast part. Unlike the purpose of a an ejector pin which is pushed or extended by the ejector plate to eject the cooled molded or cast part from the cavity/core. It is often easier to machine a core pin as a separate element and add it to the A-side or B-side of the mold as needed. Core pins are sometimes used in aluminum molds to create tall, thin cores that might be too fragile if machined out of the bulk aluminum of the mold. In some applications core pins are also used for part ejection from a casting die.



There are many types of pins with in mold bases and die casting molds. Each are designed (based on material type, core and surface hardness, and coatings) for different applications within the molding or casting process. Many factors need to be considered to choose the correct pin for the application. Factors like the draft and texture of sidewalls, depth of walls and ribs can increase the likelihood that areas of the part will cling to the mold. Resin choice can also affect pin placement or size. Some resins are “stickier,” requiring more force for release from the mold. Softer resins may also require the use of more or bigger pins to spread the force and prevent puncturing or marring of the cooled plastic.



Technical Details:

Size Tolerance: ±0.002mm

Axiality: 0.005mm

Surface Roughness: Ra0.6

Verticality: 0.005mm

0.002mm Hardened SKD61 Mold Core Pins , Die Punch Pins For Medical Plastic Tools 0



Specification:

Manufacturer  Toxmann High- Tech Co., Limited
Product Name  Mold Core Pins
Industry Standards  DIN, JIS, AISI, GB
Hardness  HRC48-52
Material  SKD61
Coating  TiN, TiCN, AlTiN, Nitriding
Roughness   RA0.6
Quality Control  Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element
Processing Machines  CNC lathes, OD Grinder
Other Service  ODM and OEM, Customized Specification, One to One Communication,   Free Samples
Order Process

 Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides   quotes and lead time→ Orders released by customer→ 50% advanced

 payment→ Arrange production→ QC pass→ Packing and shipping after   receiving balance payment.



Toxmann Has Strong Grinding Ability:

Toxmann Grinders
Brands  WAIDAI, WANPAN, HOUTMAN
Accuracy Class  PG: ±0.001mm, RA0.4
 Surface Grinder: ±0.005mm, RA0.8
 NC and OD Grinder: ±0.001mm, RA0.4
Total Number  21
Features  1. High machining accuracy and stable quality on processing.
 2. Suitable for the processing of complex and shaped parts.
 3. Facilitate mass production.



0.002mm Hardened SKD61 Mold Core Pins , Die Punch Pins For Medical Plastic Tools 1



Toxmann Business Range:

Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.

Services: CNC lathe machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.



Core Value and Company Culture:

Business Philosophy:

1. Quality is the soul of an enterprise.

2. Competitive price is our advantage.

3. Enthusiastic service is our tenet.

4. Innovation is our eternal pursuit



Quality Objectives:

1. Sample acceptance rate reaches 100%.

2. The qualified rate of finished products reaches 100%

3. Punctual delivery rate reaches 100%



Our Mission:

1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.

2. Enhance innovation capacity and contribute to sustainable development.



Why Choose Us?

1. Best product quality and most competitive price.

2. Experienced technicians are in production.

3. High-end processing machines and inspection instruments.

4. Customized designs and production.

5. Excellent pre-sale and after-sale service.



FAQ:



Q1: What is a core pin in molding?
Core pins are used in the plastic molding and die casting dies. They are a fixed element used to create a void providing the desired shape in the molded or cast part. It is often easier to machine a core pin as a separate element and add it to the A-side or B-side as needed.


Q2: What is a core in a mold?
A core is a preformed, bonded, sand insert placed into the mold to shape the interior of a casting or a part of the casting that cannot be shaped by the pattern. Cores are frequently used to create hollow sections or cavities in a casting.



Q3: What is the difference between die and punch?
A: During sheet metal forming, two different parts may be used. One part is called the punch. It performs the stretching and bending or blanking operation, while the other part is called the die block. It securely clamps the work piece and provides similar stretching bending or blanking operations.


Q4: How does a die punch work?
A: The action of a Punch & Die uses a solid metal piece, the “Punch” located vertically above the “Die”. The Die corresponds in size and shape to the Punch and is secured directly beneath the Punch. The Punch is usually, hydraulically driven to meet the Die.



0.002mm Hardened SKD61 Mold Core Pins , Die Punch Pins For Medical Plastic Tools 2


Q5: How many types of die are there?
A: Combination dies are used for operations involving more than one operation on a work station. The major difference between compound dies and combination dies is that in these dies a cutting operation is combined with with a bending or drawing operation, and hence the name “combination dies”.


Q6: What are punch dies made of?
A: Punch tooling (punch and die) is often made of hardened steel or tungsten carbide. A die is located on the opposite side of the workpiece and supports the material around the perimeter of the hole and helps to localize the shearing forces for a cleaner edge.
