Product Details:
|
Product Name: | Hot Runner Nozzle | Material: | Stainless Steel |
---|---|---|---|
Roughness: | RA0.6 | Tolerance: | ±0.005mm |
Concentricity: | ±0.01mm | Processing Types: | CNC Turning, Milling, Grinding, Spark Machining |
Quality: | 100% Inspection | Application: | Hot Runner System |
Highlight: | Stainless Steel Hot Runner Nozzle,Antiwear Hot Runner Nozzle,Hot Sprue Bushing Injection Molding |

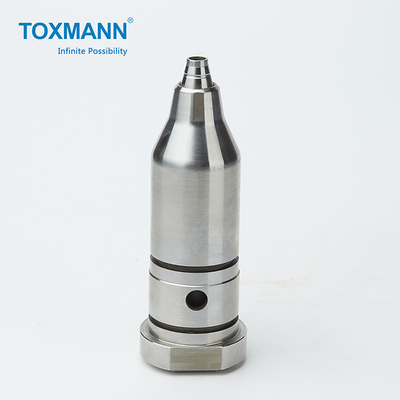

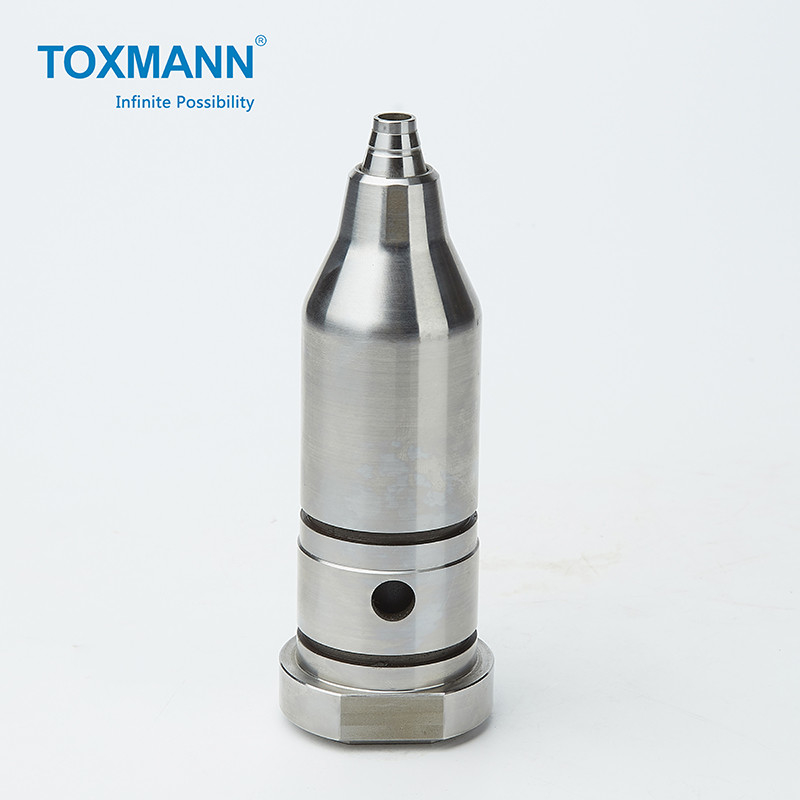

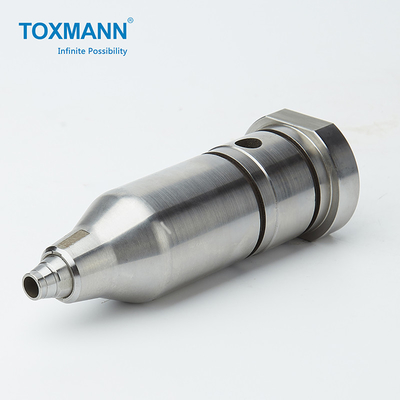

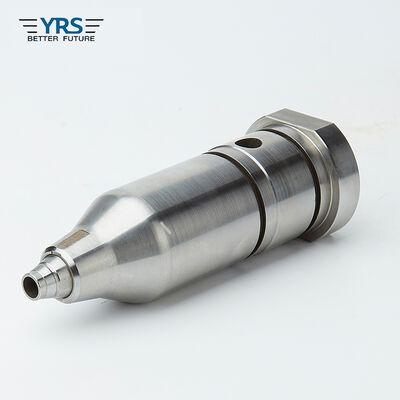

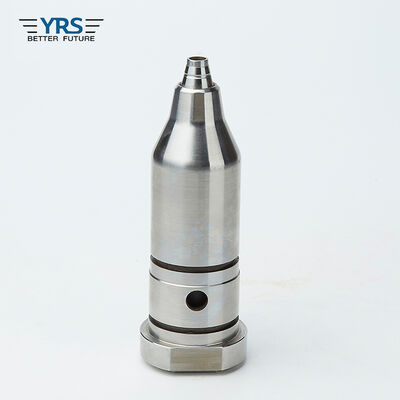

Plastic Mold Parts Hot Runner Nozzle Tips Sprue Bushing Injection Mold Parts
Processing & Inspection Machine List.pdf
Hot runner systems are used in injection molds to inject molten plastic particles into the cavity of the mold. The hot runner mold is a new structure that heats the runners and runners of traditional molds or three-plate molds, and does not need to take out the runners and runners during each molding.
Many conditions are considered when choosing a hot nozzle, such as: different plastic properties, shape, size, thickness, weight of the product, cavity arrangement and gate position. There are several hot nozzles of different shapes and sizes on the market. Runner plates to suit a variety of products. A schematic diagram of how it works:
Manufacturer |
Toxmann High- Tech Co., Limited |
Product Name |
Hot Runner Nozzle |
Industry Standards |
DIN, JIS, AISI, GB |
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
Material |
Stainless Steel |
Coating |
TiN, TiCN, AlTiN, Nitriding |
Quality Control |
Caliper, Altimeter, CMM, Projector, Micrometer |
Processing Machines |
CNC Lathes, OD Grinder, EDM, CNC Milling Machine, Wire Cutting Machine |
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples |
Order Process |
Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production →QC pass→ Packing and shipping after receiving balance payment. |
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
Related Industries: Medical, Packaging, Aerospace, Electronic and automation.
Any questions about plastic molds parts and tooling, or you want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Please do not hesitate to contact me.
Further Information:
Testing Machine |
Digital Height Gauge, Caliper, Coordinate Measuring Machine, Projector, Roughness Tester, Hardness Tester, etc. |
Quality Testing |
1) Technicians self-check in production |
Main Markets |
North America, South America, Eastern Europe, West Europe, North Europe, South Europe, South Asia, Africa |
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
FAQ:
Q1: What does a hot runner do?
A: A hot runner system is an assembly of heated components used in plastic injection molds that inject molten plastic into the cavities of the mold.
Q2: What is the difference between hot runner and cold runner?
A: Hot runners use a screw nozzle that is fed by a barrel using a pump, while cold runners use a closed, thermoset mold. The primary task of any injection runner system is to direct the material flow from the sprue to the mold cavities. The system requires additional pressure to push the material through the runner.
Q3: What is advantage of hot runner Mould?
A: A hot runner makes it easier for a molding machine to inject plastic into a mould cavity. A hot runner increases the capability of a molding machine. It reduces the plastic flow length so a molder can save material by making thinner and lighter parts.
Q4: How many types of hot runners are there?
A: There are two types of hot runner systems, insulated runners and heated runners. Insulated runners have oversized passages formed in the mold plate. They are a more simple design and are less costly to build than heated runners.
