Product Details:
|
Product Name: | Mold Core | Material: | Stavax |
---|---|---|---|
Hardness: | HRC48~50 | Tolerance: | ±0.005mm |
Processing Type: | CNC Turning, External Cylindrical Grinding | Quality: | 100% Inspection |
Application: | Plastic Mold | Concentricity: | ±0.01mm |
High Light: | Anti Corrosion Plastic Injection Parts,Rustproof Plastic Injection Parts,HRC48 Injection Plastic Parts |

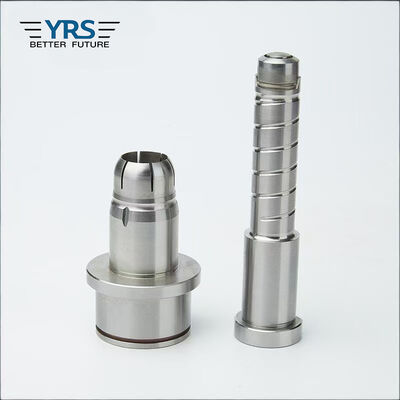

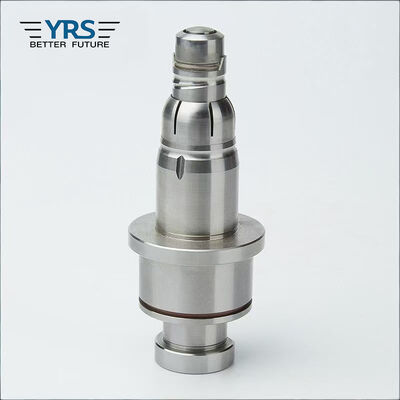

Mold Core Cavity Inserts Injection Mold Parts External Cylindrical Grinding Parts
Processing & Inspection Machine List.pdf
This Lathe machined part is used in plastic mold industry. The finish of the parts is required RA0.6. The closest tolerance of pouring nozzle is required 0.005mm. In order to improve the durability and finish, the parts are made of Stavax, and the hardness required HRC48-52.
During processing, the deformation of parts should be controlled. The rod will deform during heat treatment, so enough allowance should be left for roughing. There is a transition in the middle of the main rod, pay great attention to the transition Angle processing.
Our company is very good at rod products processing, we have advanced CNC lathe and internal and external grinding machines, at the same time has a group of professional technical personnel to ensure good quality for our products. We can process according to drawings or samples, we welcome your inquiry.
Manufacturer |
Toxmann High- Tech Co., Limited |
Product Name |
Mold Core |
Industry Standards |
DIN, JIS, AISI, GB |
Closest Tolerance | ±0.005mm |
Polishness | RA0.6 |
Axiality | ±0.005mm |
Verticality | ±0.005mm |
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
Material |
Stavax ESR |
Coating |
Chrome Plated |
Quality Control |
Hardness Tester, Caliper, Altimeter, CMM, Projector, Mircrometer |
Processing Machines |
CNC Lathe, External Cylindrical Grinder |
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples |
Order Process |
Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production→QC pass→ Packing and shipping after receiving balance payment. |
Further Information:
Testing Machine |
Digital height gauge, caliper, Coordinate measuring machine, projection machine, roughness tester, hardness tester and so on. |
Quality Testing |
1) Technicians self-check in production |
Main Markets |
North America, South America, Eastern Europe, West Europe, North Europe, South Europe, South Asia, Africa |
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
FAQ:
Q1: What is process of grinding?
A: Grinding, also called surface grinding, is a machining operation in which material is removed using a powered abrasive wheel, stone, belt, paste, sheet, compound, etc. to realize fine finish tolerances and surface finishes.
Q2: What are External Cylindrical Grinding Machines?
A: Manufacturers use external cylindrical grinding technology to achieve the highest level of throughput without sacrificing precision.
Q3: What are the different types of external grinders?
A: There are five different types of cylindrical grinding: outside diameter (OD) grinding, inside diameter (ID) grinding, plunge grinding, creep feed grinding, and centerless grinding.
Q4: What is outside diameter grinding?
A: OD grinding is grinding occurring on external surface a of an object between the centers. The centers are end units with a point that allow the object to be rotated. The grinding wheel is also being rotated in the same direction when it comes in contact with the object.
Q5: What is the function of grinder?
A: A grinding machine, often shortened to grinder, is a power tool (or machine tool) used for grinding. It is a type of machining using an abrasive wheel as the cutting tool. Each grain of abrasive on the wheel's surface cuts a small chip from the workpiece via shear deformation.
