Product Details:
|
Product Name: | Mold Core Parts Cavity Parts | Material: | NAK80 |
---|---|---|---|
Hardness: | HRC38~44 | Tolerance: | ±0.005mm |
Dimension: | Customized | Quality: | 100% Inspection |
Applications: | Medical Industry, Cosmetics Industry, Plastic Mold Industry, Daily Necessities Industry, Etc. | Processing Type: | Milling, Turning, Wire-cutting, Grinding |
Highlight: | Cosmetics Metal Injection Molding Parts,NAK80 Metal Injection Molding Parts,Practical Injection Mold Components |

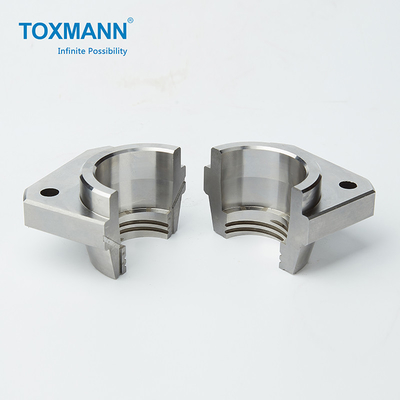

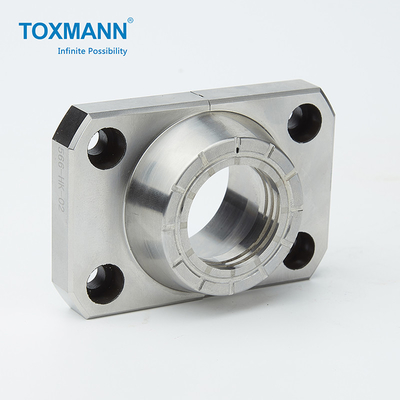

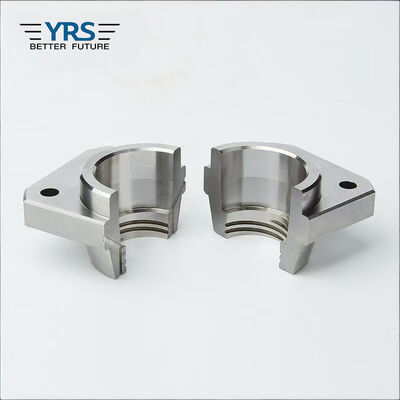

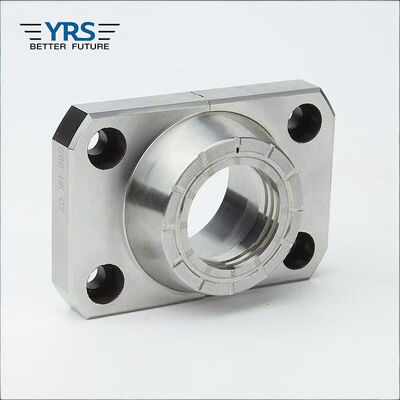

Injection Mold Components Precision Injection Mold Parts Plastic Mold Core Cavity
Processing & Inspection Machine List.pdf
The molding part of the injection mold is generally composed of a cavity, a core, and an insert, which is used to shape the inner and outer surfaces of plastic products. In general, the outer surface of the plastic product is formed by the cavity, and the inner surface of the plastic product is formed by the core:
1. Cavity structure design. The cavity is used to form the outer surface of the plastic part, and the cavity can be divided into integral type, integral embedded type and partial embedded type (combined type) according to different structures. Under normal circumstances, the use of mosaic structure can simplify the processing of complex cavities, the template avoids the same material, saves high-quality materials, and uses the splicing gap to exhaust, but the surface of the plastic part has mosaic blocks.
2. Core structure design. The core is the inner surface of the molded plastic product, which is generally divided into two categories: the integral type used by the small injection mold and the punch and the combined type used by the large and medium injection molds.
Manufacturer |
Toxmann High- Tech Co., Limited |
Product Name |
Mold Core Parts Cavity Parts |
Industry Standards |
DIN, JIS, AISI, GB |
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
Material |
NAK80 |
Dimension |
Customized or according to samples |
Quality Control |
Hardness tester, Caliper, Altimeter, CMM, Projector, Quadratic Element |
Processing Machines |
CNC lathes, OD Grinder, EDM, CNC Machining Center, Wire Cutting Machine |
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples |
Order Process |
Customer inquiries (provide 2D or 3D drawing) → Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production→QC pass→ Packing and shipping after receiving balance payment. |
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
Related Industries: Medical, Packaging, Aerospace, Electronic and automation.
Any questions about plastic molds parts and tooling, or you want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Please do not hesitate to contact me.
1. Process parts with most advanced machines to guarantee perfect quality and surface finish.
2. Technicians with an average of 10 years of experience are in charge of production.
3. All mold parts to be shipped can be attached with a quality inspection report as required.
4. Our mold parts can provide certificate of origin of raw materials.
5. Reasonable prices for samples and mass production.
Why Choose Us?
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Toxmann Core Value and Culture:
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
FAQ:
Q1: What is mold core and cavity?
A: The core is the male part which forms the internal shape of molding. The cavity is the female part which forms external shape of molding.
Q2: What is core in injection molding process?
A: Cavity and core are used in the injection molding process, where the concave part of the mold is the cavity and the convex part is the core. The cavity and core are used in pairs, with the cavity also referred to as the female mold and the core as the male mold.
Q3: What is core in plastic injection molding?
A: Core is the side of the tool where the plastic part is injected from; also known as the bottom half of the tool. The upper half of the mold is called CORE.
Q4: Why core is used in mold cavity?
A: The core and cavity are the two halves of the mold where the hot molten plastic material is injected into the core and cavity and the gap between the core and cavity is filled with the hot molten material during the injection molding process and then hardened into the final shape.
Contact Person: Frank Li
Tel: 86-15989457573
