Product Details:
|
| Product Name: | Die Punch Pins | Material: | DAC, SKD61, 8407, 1.2343, 1.2344 |
|---|---|---|---|
| Hardness: | HRC42~52 (based On Materials) | Tolerance: | ±0.005mm |
| Applications: | Die Casting Mold | Surface Treatment: | Titanium Plating |
| Machining Types: | Turning, Grinding | ||
| High Light: | 0.005mm Die Punch Pins,1.2343 Die Punch Pins,Punch Pins Die Casting Tooling |
||

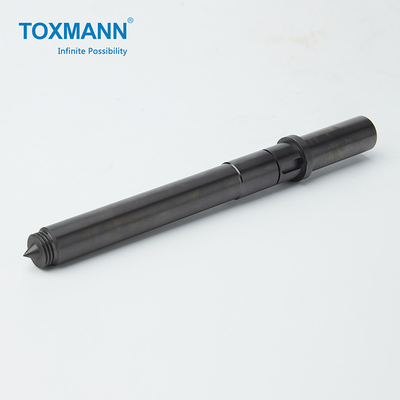

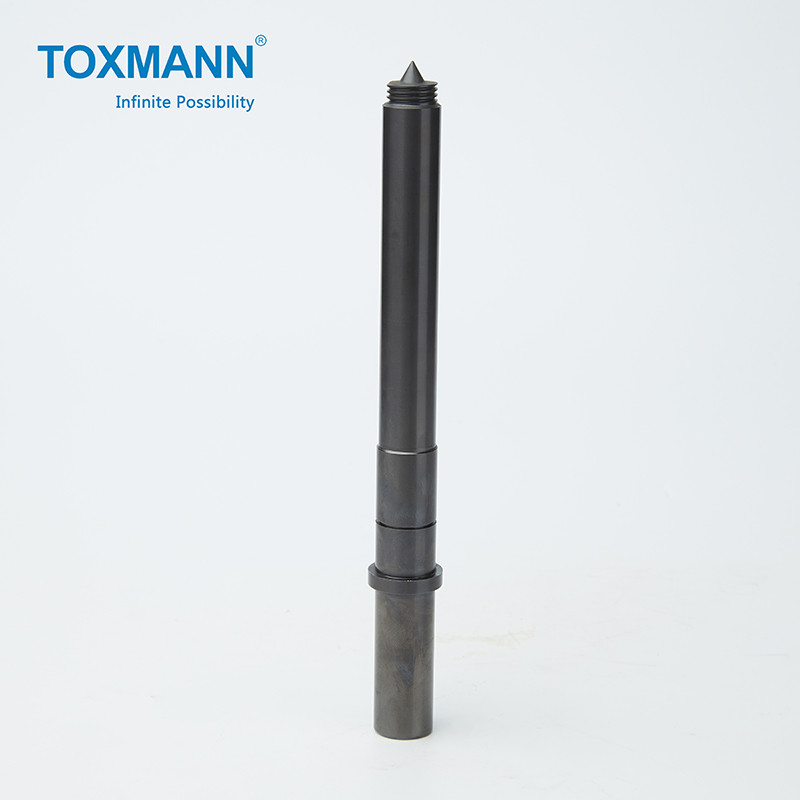

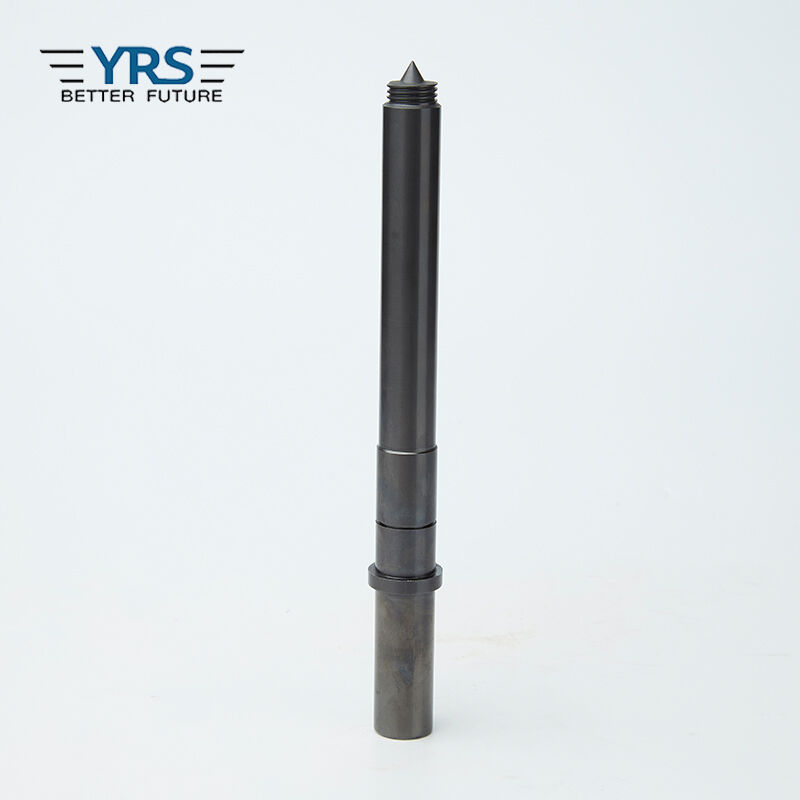

Precision Mold Parts Cooling Hole Die Punch Pins Core Pins Die Casting Tooling
Processing & Inspection Machine List.pdf
The key to a successful die casting is an excellent tool design. One of the hardest components to design and maintain for good tool life is a core pin. A “core” is the separate and replaceable part of the die that forms an internal feature of the casting. Core pins come in all shapes and sizes, but the most commonly used shape design is circular. Core pins may be fixed to the die cavity or to a slide, actuated through the mechanical opening/closing of the die, or by hydraulic cylinder or other means. While core pins are the backbone of good tool design, when not properly designed, it can result in severe downtime and inefficient productivity.
| Material | DAC |
| Hardness | HRC42~52 (based on materials) |
| Heat Treatment | Vacuum Heat Treatment + Nitriding Treatment |
| Service | Made-To-Order |
| Surface Treatment | Titanium Plating |
| Closest Tolerance | ±0.005 |
| Polishness | Ra0.6 |
| Axiality | 0.005mm |
| Verticality | 0.005mm |
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC lathe machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
Related Industries: Medical, Packaging, Aerospace, Electronic and automation.
Any questions about plastic molds parts and tooling, or you want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Please do not hesitate to contact me.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
