Product Details:
|
| Product Name: | Medical Mold Core Pins | Material: | SKD61 |
|---|---|---|---|
| Hardness: | HRC48~52 | Tolerance: | ±0.005mm |
| Applications: | Stamping Die, Stamping Tools, Injection Mold | Quality: | 100% Inspection |
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc | Verticality: | 0.005mm |
| High Light: | Medical Stainless Steel Pins,Cosmetics Stainless Steel Pins,Multipurpose Plastic Mould Parts |
||

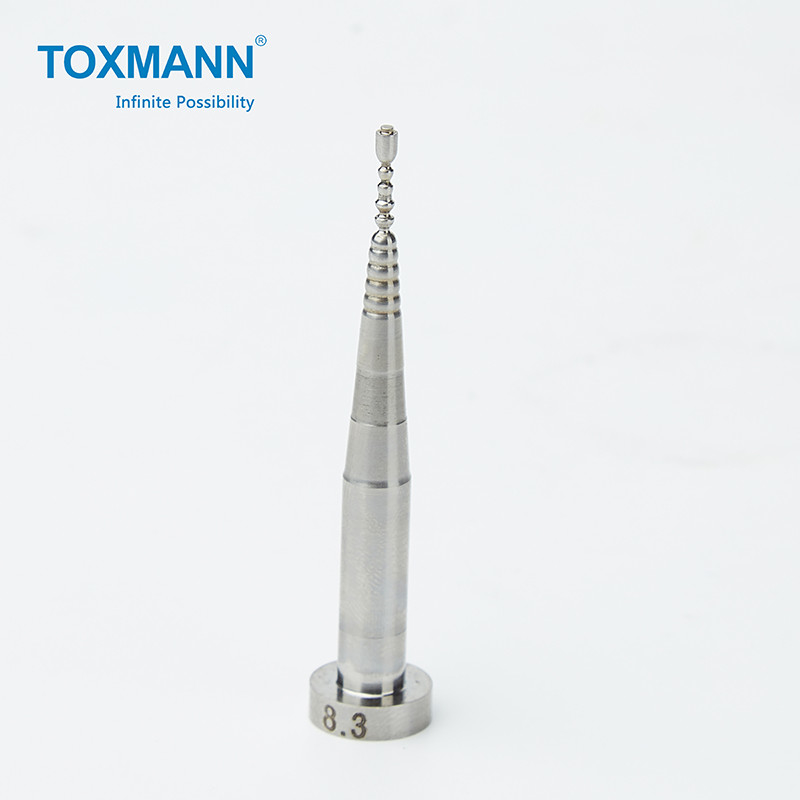

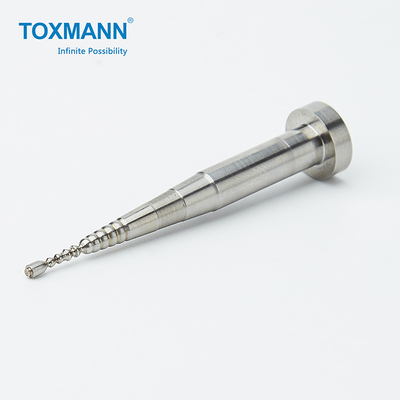

Medical Cosmetics Industry Die Punch Pins Multiple Cavity Plastic Mould Parts
Processing & Inspection Machine List.pdf
When the parting surface of the plastic part is determined, it is necessary to consider whether to use a single-cavity mold or a multi-cavity mold. The determination of the number of cavities mainly depends on the maximum injection volume of the injection machine, the rated clamping force, the plasticizing speed, and the accuracy of the product. Requirements, production economy and other factors, the production batch of this plastic part is mass production, so a multi-cavity structure of one mold can be adopted.
General principles of cavity arrangement:
1. The flow length should be appropriate, the waste in the runner should be as little as possible, the gate position should be appropriate and uniform, the feeding should be balanced, and the cavity pressure should be balanced.
2. The positioning should ensure that the runner and gate sleeve have a certain distance from the edge of the fixed mold cavity to meet the sealing requirements.
3. The ranking should meet the space requirements of the mold structure, etc.
4. In order to achieve a better cooling effect of the mold, attention should be paid to the influence of screws and push rods on the cooling water holes, and the position of the cooling water holes should be reserved.
5. The ranking should be as compact as possible to reduce the overall size of the mold, and the ratio of length to width should be moderate, and the requirements of the injection machine should also be considered.
Specification:
| Manufacturer | Toxmann High- Tech Co., Limited |
| Product Name | Medical Mold Core Pins |
| Industry Standards | DIN, JIS, AISI, GB |
| Hardness | HRC48-52 |
| Material | SKD61 |
| Coating | TiN/TiCN/AlTiN/Nitriding |
| Quality Control | Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element |
| Processing Machines | CNC lathes, OD Grinder |
| Other Service | ODM and OEM, Customized Specification, One to One Communication, Free Samples |
| Order Process |
Customer inquiries (provide 2D or 3D drawing) → Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production → QC pass→ Packing and shipping after receiving balance payment. |
Toxmann Business Range:
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC lathe machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
1. We have rich experience and specialize in manufacturing mold parts and machined parts for over 13 years.
2. We have perfect technical team and precision machines, which ensure to provide best service and quality to customers.
3. Short lead time of samples to impove work efficiency.
4. Professional production team and strictly quality management to meet the requirement of capacity and quality.
5. Competitive quotation, excellent service, flexible trade terms.
6. Our philosophy: customers' satisfaction is our target.
Toxmann High- Tech Co., Limited is a professional OEM/ODM mold accessories and machine parts manufacturer. We provide mold design, mold manufacturing, injection/die-casting/stamping mold parts processing. We have a team with extensive quality control experience to help Toxmann meet customer requirements. High quality, competitive price, quick response are our core missions.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
FAQ:
Q1: What is multi-cavity?
A: A multi-cavity mold has more than one cavity of the same part, and it produces more than one part per production cycle. Because of the shorter lead time per batch, using a multi-cavity mold results in a faster completion of the desired number of parts.
Q2: What is a 4 cavity mold?
A: If you want to produce more products with the same mould, it is advisable to opt for a multi-cavity mould. For example, a four-cavity mould is capable of manufacturing four million products within the shot guarantee.
Q3: How many cavities are in an injection mold?
A: In plastic injection molding, the number of items that can be molded in one shot using one mold is called the number of cavities. The number of cavities can be from 1 to a reported maximum of 216.
Q4: What is cavity in manufacturing?
A: The most common number of cavities are 1, 2, 4, or 8.
Contact Person: Frank Li
