Product Details:
|
| Product Name: | Machined Part- Die Holder | Material: | CR12MOV |
|---|---|---|---|
| Hardness: | HRC58~62 | Tolerance: | ±0.01mm |
| Machining Types: | Milling, Grinding, Wire-cutting | Quality Inspection: | 100% Inspection |
| Applications: | Machinery Industry, Automation Industry, Mould Industry | Service: | ODM, OEM |
| High Light: | ODM CNC Machined Components,Antiwear CNC Machined Components,CR12MOV Custom Machined Components |
||

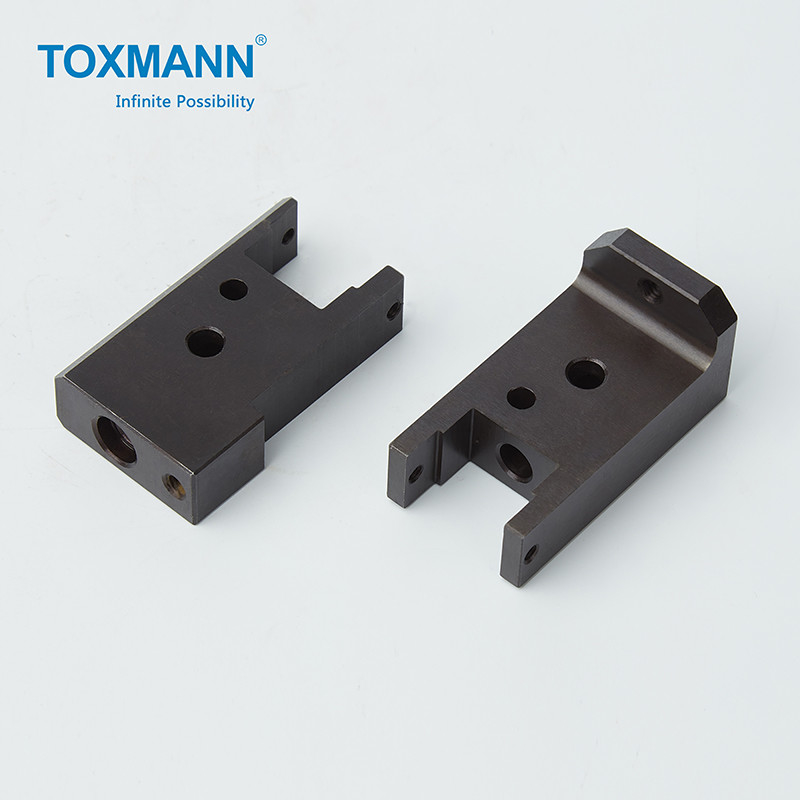

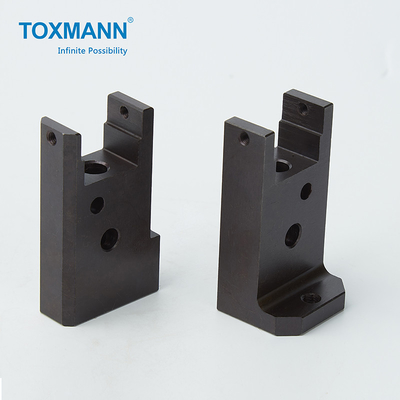

Black Finish Precision CNC Machined Parts CNC Machined Component Die Holder
Processing & Inspection Machine List.pdf
This part belongs to precision CNC machined parts, mainly with CNC machining center, wire-cutting machine and surface grinder to complete the processing. The head of this part is used for fixing the die, the parallelism and perpendicularity of the part should be guaranteed as required, otherwise the die will break during punching.
The position tolerance of several precision holes in the parts is ±0.01mm, and we use the slow wire-cutting machine to process to ensure the position tolerance of the holes. The dimensional accuracy of these parts is ±0.01mm, and the surface finish is above RA0.8, so the precision surface grinder is needed to reach the request.
|
Manufacturer |
Toxmann High- Tech Co., Limited |
|
Product Name |
Machined Part- Die Holder |
|
Industry Standards |
DIN, JIS, AISI, GB |
|
Polishness |
RA0.8 |
|
Material |
CR12MOV |
| Parallelism | ±0.01mm |
| Perpendicularity | ±0.02mm |
|
Surface Treatment |
Black Finish |
|
Quality Control |
Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element |
|
Processing Machines |
CNC Machining Center, Surface Grinder, Wire- cutting Machine |
|
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples, Make to Order. |
In recent years, we have introduced many high-precision processing machines and inspection instruments. Such as:
Processing Machines: Machining Centers, NC Lathes, Wire-cutting Machines and Mirror Spark Machines, Optical Grinding Machines and NC Grinders.
Inspection Instruments: Coordinate Measuring Machines, Quadratic Elements, Projectors and Altimeters, Rockwell Hardness Tester.
Our devices are equipped according to the highest international standards. Complete processing and inspection equipment plus the best quality-mind are our guarantee for the excellent quality and service for customers.
Some Toxmann Slow Wire-Cutting Machines:
Pros of Toxmann CNC Machined Parts:
1. Using high-end machines to process to meet accuracy.
2. Integrated inspection instruments to guarantee quality before shipping.
3. Raw materials and heat treatment are provided by best manufacturers, such as ASSAB, TOKAI, etc.
4. Most competitive price for each order.
Our Quality and Lead Time Objectives:
1. Sample acceptable rate reaches to 100%
2. The qualified rate of finished products reaches to 100%
3. Delivery on time rate reaches to 100%
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Packaging:
1. Toxmann packaging is based on the highest industry standard;
2. Each part is packed independently.
1. Using DHL, UPS, Fedex, TNT, EMS and SF experss to deliver products to your destination.
2. Ship products to your nearest port by sea.
Q1: What are machined parts and how are they used?
A: Machined parts are items we use day-to-day bases. In fact, we depend on them. Below are 7 aspects about Machined parts in any industrial set up. Machining of parts is a process where a piece of raw material is cut to fit specific measurements. Actually, the final shape, size, or design achieved is through material removal.
Q2: Can machined parts be metal or plastic?
A: Machined parts can be metal or plastic (sometimes other materials too), but they must be made from a material that can be cut without drastically deforming. Sometimes parts are machined after being built with another manufacturing process. For instance, cast or molded items may have certain details or features machined into them at a later stage.
A: Components of a CNC system
Central processing unit (CPU)
Input devices.
Machine control panel.
Programmable logic controller (PLC)
Servo-control unit.
Display unit.
