Product Details:
|
Product Name: | Plastic Mold Bushing | Material: | S136 |
---|---|---|---|
Hardness: | HRC48~52 | Tolerance: | ±0.005mm |
Processing Type: | CNC Turning, Internal And External Grinding | Quality: | 100% Inspection |
Surface Roughness: | RA0.8 | Applications: | Medical Industry, Cosmetics Industry, Plastic Mold Industry |
High Light: | Multiscene Precise Metal Part,RA0.8 Precise Metal Part,S136 Precision Molded Products |

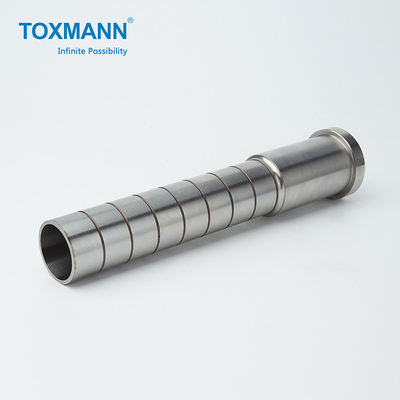

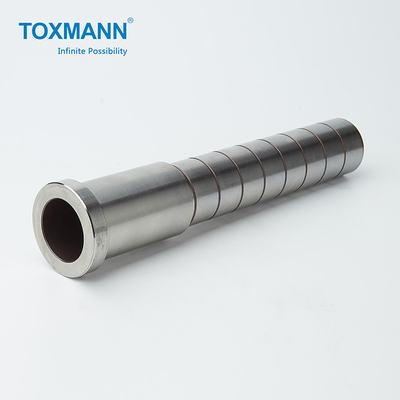

S136 Bushing High Parallelism Precision Mold Parts Injection Mold Components
Processing & Inspection Machine List.pdf
Mold accessories (Mold parts) refer to the general term for metal accessories used exclusively in the mold industry for stamping molds, plastic molds or FA automation equipment. Die accessories include: punching needle, punch, guide post, guide sleeve, thimble, cylinder, steel ball sleeve, no oil guide sleeve, no oil slide plate, guide post components, etc.
Plastic Mold Accessories (Mold Parts)
Single-section shooting tip, double-section shooting tip, double-section shooting tip, flat tip, flat tip, positioning column, plastic mold guide sleeve, straight sleeve, center column sleeve, plastic mold guide sleeve, straight sleeve, middle support sleeve, positioning column , Square auxiliary device, Stereo positioning block group guide auxiliary device, A, B, C type filling nozzle, fixed ring A, B type, standard mechanical switch, square auxiliary device, small nozzle standard special nozzle liner Sleeves, standard special nozzle bushings for large nozzles, mold date indicating devices, resin switches, water stoppers, finished tips for plastic molds, pen cores, pen tubes, small tie rod C-type, diagonal support tips, pull material tips, plastic die guide posts, tie rods, return pins, springs, thimbles, cylinders, garbage nails, etc.
Material | S136, SKD11 |
Hardness | HRC48~52 or Customized |
Heat Treatment | Vacuum Heat Treatment |
Service | Made-to-Order |
Surface Treatment | Customized |
Closest Tolerance | ±0.005mm |
Polishness | Ra0.6 |
Axiality | 0.01mm |
Verticality | 0.01mm |
Features:
Manufacturer |
Toxmann High- Tech Co., Limited |
Product Name |
Guide Pins For Plastic Mold |
Industry Standards |
DIN, JIS, AISI, GB |
Axiality |
±0.005mm |
Coating |
TiN/TiCN/AlTiN/Nitriding |
Quality Control |
Hardness Tester, Caliper, Altimeter, Micrometer |
Processing Machines |
CNC lathes, OD Grinder, CNC Milling, Wire Cutting Machine |
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples |
Order Process |
Customer inquiries (provide 2D or 3D drawing) → Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production → QC pass→ Packing and shipping after receiving balance payment. |
1. Process parts with most advanced machines to guarantee perfect quality and surface finish.
2. Technicians with an average of 10 years of experience are in charge of production.
3. All mold parts to be shipped can be attached with a quality inspection report as required.
4. Our mold parts can provide certificate of origin of raw materials.
5. Reasonable prices for samples and mass production.
Why Choose Us?
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Toxmann Core Value And Culture:
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
FAQ:
Q1: What is a bushing used for?
A: Bushings are akin to thin tubes most commonly used for machinery with rotating or sliding shafts to improve efficiency and reduce vibration and noise. Bushings can be used for drilling operations in drill jigs, hydraulic external gear pumps and motor.
Q2: What is a bushing vs bearing?
A: Bushing is a cylindrical-shaped machine component, an independent plain bearing that is used to support a shaft. It is technically identical to a bearing except it's a single independent one-part device whereas bearing is mostly made of two or more components.
Q3: What are the different types of bushings?
A: Bushing Types & Material - Overview
The Self-Lubricating Bushing Concept.
Metal-Polymer Composite Bushings (Plain Bearings).
Bronze Wrapped Bushings.
Filament Wound Plastic Self-lubricating Bushings.
Injection Molded Plastic Self-lubricating Bushings.
Q4: What are bushings made of?
A: Bushings can be made of a variety of materials, such as bronze, steel-backed babbitt, plastic, nylon, or cast iron. The key to the material design depends on the type of use the bushing will experience. The bushing material must support and protect the component from damage.
