Product Details:
|
| Product Name: | CNC Bronze Turned Shaft | Material: | Copper, Bronze |
|---|---|---|---|
| Coaxiality: | ±0.01mm | Tolerance: | ±0.01mm |
| Dimension: | According To Drawings Or Samples | Quality Inspection: | 100% Inspection |
| Processing Machines: | NC Lathe, Cylindrical Grinder | Samples: | Feasible |
| High Light: | Bronze CNC Turning Parts,Practical CNC Turning Parts,Shaft CNC Precision Turning Components |
||

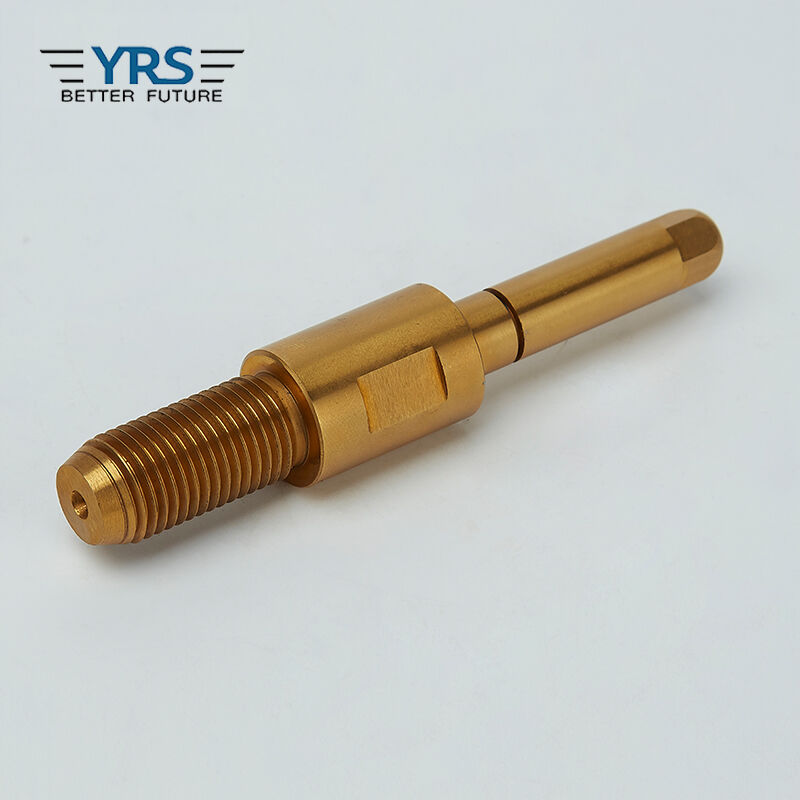

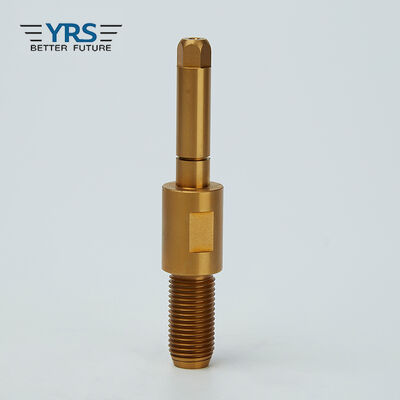

Bronze Material Precision Turned Parts CNC Lathe Machining Parts Customized Shaft
Processing & Inspection Machine List.pdf
When processing high-precision tin bronze shaft parts, the following methods can be used:
1. The tool should use single crystal diamond as much as possible, and effectively obtain the best lattice position. When sharpening the geometric angle of the ultra-finishing tool, a wide blade and a large rake angle can be used.
2. The precision of all moving parts and transmission of the machine tool must be higher than the machining precision. The machine tool must have sufficient rigidity to avoid vibration during processing. At the same time, the influence of environmental vibration must be avoided.
3. The machine tool spindle must have long-term high-speed running accuracy, and must have a lubrication and cooling system. Because PCD is used for high-precision machining of tin bronze materials, it must be rotated at high speed, and the accuracy of the spindle will directly affect the machining accuracy.
4. The superfinishing allowance should be small, generally less than 0.1 mm. After semi-finishing, the workpiece must be fully cooled to the temperature of the machine tool before super-finishing. Too low or too high will affect the accuracy. There must be sufficient and effective cooling during processing to avoid the temperature of the workpiece rising due to the processing heat, resulting in thermal deformation and affecting the accuracy.
|
Manufacturer |
Toxmann High- Tech Co., Limited |
|
Product Name |
CNC Copper Turned Shaft |
|
Applicaitons |
Automation Industry, Electron Industry |
|
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
|
Surface Finishing |
Polished |
|
Quality Control In Toxmann |
Hardness Tester, Caliper, Altimeter, CMM, Projector, 2.5D, Micrometer |
|
Processing Machines |
CNC Lathe Machine, Cylindrical Grinder |
|
Other Service |
ODM and OEM, Customized Specification, One to One Communication |
|
Order Process |
Customer inquiries (provide 2D or 3D drawing) → Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production → QC pass→ Packing and shipping after receiving balance payment. |
Toxmann has a group of high-precision NC Lathes and turning-milling compound machines imported from Japan and Taiwan. Our NC Lathes have been highly appreciated by our customers for their stable quality and efficient productivity. The following is a list of our Grinders and NC Lathes:
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann High- Tech Co., Limited is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Q1: What are turning tools?
A: Turning tools are used on lathes for cutting or finishing the outside diameter of a workpiece. Turning tools can be used to produce cylindrical parts. In its basic form, turning can be defined as the machining of an external surface with the workpiece rotating, or with a single-point cutting tool.
Q2: What are types of inserts?
A: Four-sided insert shapes include diamond, square, rectangular and Rhombic. A diamond insert is a four-sided insert with two acute angles used for material removal. Square cutting tips have four equal sides. Rectangular inserts have four sides, two of which are longer than the other two.
Q3: What is the most common lathe turning insert?
A: The most common turning insert sold in North America today is a CNMG 432. This insert is capable of almost 0.250" (6.35mm) depth of cut.
Q4: How to choose correct turning insert?
A: There are many parameters to consider when choosing a turning insert. Carefully select insert geometry, insert grade, insert shape (nose angle), insert size, nose radius and entering (lead) angle, to achieve good chip control and machining performance.
Select insert geometry based on selected operation, for example finishing
Select the largest possible nose angle on the insert for strength and economy
Select the insert size depending on the depth of cut
Select the largest possible nose radius for insert strength
Select a smaller nose radius if there is a tendency for vibration
Q5: What are precision turned parts?
A: Precision Turned Parts Precision turned parts are parts that have been machined with extremely tight tolerances. The majority of precision turned parts are formed through a simple yet important process known as CNC turning.
