Product Details:
|
| Product Name: | CNC Customized Metal Part | Material: | 718H |
|---|---|---|---|
| Original Hardness: | HRC35-42 | Tolerance: | ±0.02mm |
| Machining Type: | Milling, Grinding, Polishing | Quality Inspection: | 100% Inspection |
| Applications: | Motor Industry, Machinery Industry, Automotive Industry | Service: | ODM, OEM |
| High Light: | Practical CNC Precision Mechanical Parts,Metal CNC Precision Mechanical Parts,0.02mm CNC Metal Parts |
||
Customized Non-Standard Mechanical Part Precision Machined Parts CNC Metal Parts
Processing & Inspection Machine List.pdf

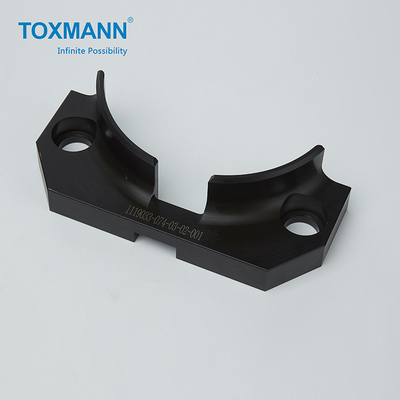

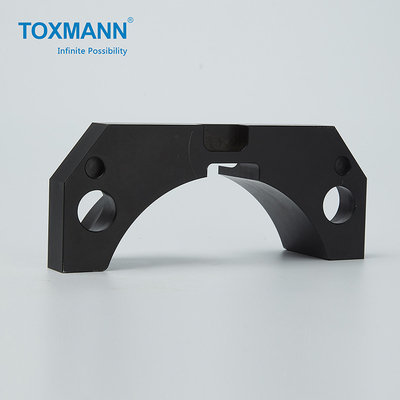

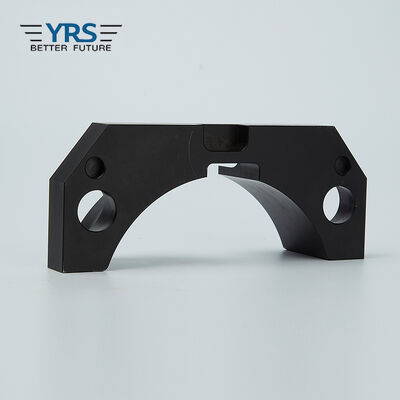

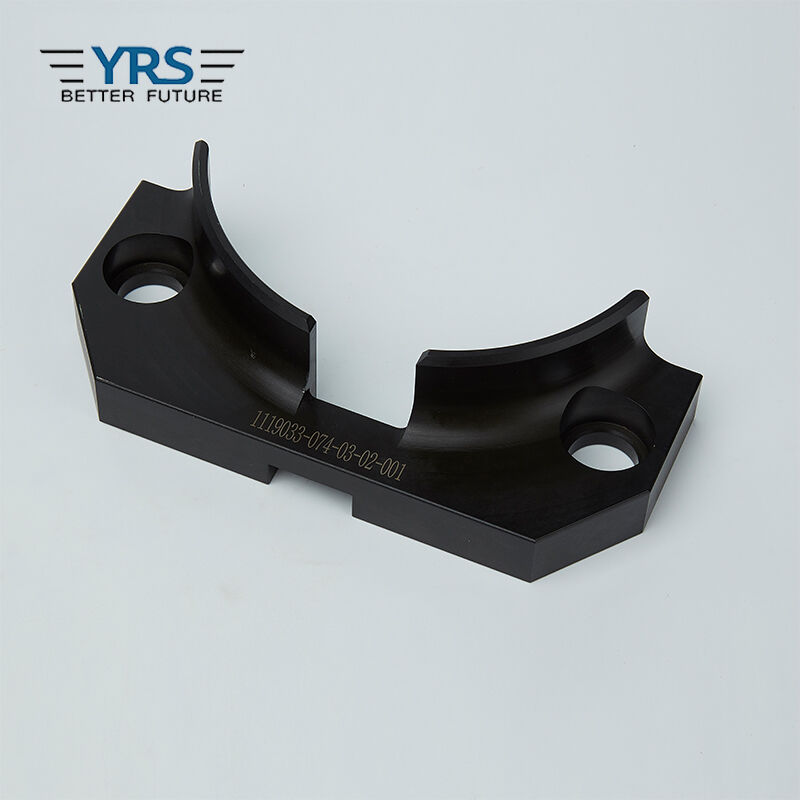

This part is a non-standard mechanical part from automation industry. The processing machines for this part are CNC machining center, grinder and marking machine. Each transition radian Angle in the diagram can increase the strength of the part, we paid attention to the geometric tolerance of two holes. The tolerance of groove width and groove depth is ±0.01mm.The overall surface finish of the part is RA0.08, so we use a precision surface grinder to grind the plane part. After finishing machining and testing on the surface of the parts, we will conduct blackening surface treatment. Finally mark the numbers with laser marking machine according to drawing requirement.
The material of this part is 718HH, the material is from Switzerland, with high toughness. We use CMM to inspect special shaped part to ensure the accuracy of each size of the part.
|
Manufacturer |
Toxmann High- Tech Co., Limited |
|
Product Name |
CNC Customized Metal Part |
|
Industry Standards |
DIN, JIS, AISI, GB |
|
Polishness |
RA0.8 |
|
Material |
718H |
|
Surface Treatment |
Black Finish |
|
Quality Control |
Hardness Tester, Caliper, Altimeter, CMM, Projector, Quadratic Element |
|
Processing Machines |
CNC Machine Center, Marking Machine, Surface Grinder, Polisher |
|
Other Service |
ODM and OEM, Customized Specification, One to One Communication, Free Samples, Make to Order. |
|
Platness Tolerance |
±0.01mm |
Our Quality And Lead Time Objectives:
1. Sample acceptable rate reaches to 100%
2. The qualified rate of finished products reaches to 100%
3. Delivery on time rate reaches to 100%
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Packaging:
1. Toxmann packaging is based on the highest industry standard;
2. Each part is packed independently.
Shipping:
1. Using DHL, UPS, Fedex, TNT, EMS and SF experss to deliver products to your destination.
2. Ship products to your nearest port by sea.
Q1: What are machined parts and how are they used?
A: Machined parts are items we use day-to-day bases. In fact, we depend on them. Below are 7 aspects about Machined parts in any industrial set up. Machining of parts is a process where a piece of raw material is cut to fit specific measurements. Actually, the final shape, size, or design achieved is through material removal.
Q2: Can machined parts be metal or plastic?
A: Machined parts can be metal or plastic (sometimes other materials too), but they must be made from a material that can be cut without drastically deforming. Sometimes parts are machined after being built with another manufacturing process. For instance, cast or molded items may have certain details or features machined into them at a later stage.
A: Components of a CNC system
Central processing unit (CPU)
Input devices.
Machine control panel.
Programmable logic controller (PLC)
Servo-control unit.
Display unit.
Q5: Why choose ASSAB 718H steel?
A: ASSAB 718 HH is manufactured to consistently the high quality of standards with a low sulphur content, giving a steel with the following characteristics: good polishing and photo-etching properties
Q6: What is the hardness of 718H die steel?
A: The 718H die steel is in the annealed state at the factory and the hardness is HB290-310. The 718H is in a pre-hardened state at the factory, and its hardness is HRC28-36.
Q7: What is the difference between 718H and s136H steel?
A: 718H is also one steel material of P20, just was harden. P20 have both domestic and imported in China. S136H is better than P20H (718H), which is much stronger corrosion resistance.
