ISO9001 SKD11 CNC Machining Steel Parts , Durable CNC Lathe Components

ISO9001 SKD11 CNC Machining Steel Parts , Durable CNC Lathe Components
ISO9001 SKD11 CNC Machining Steel Parts , Durable CNC Lathe Components ISO9001 SKD11 CNC Machining Steel Parts , Durable CNC Lathe Components

Large Image :  ISO9001 SKD11 CNC Machining Steel Parts , Durable CNC Lathe Components

Product Details:
Place of Origin: China
Brand Name: Toxmann
Certification: ISO9001
Model Number: Toxmann-149
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Coated with anticorrosive oil and packed with carton box
Delivery Time: 10~15 working days
Payment Terms: T/T, D/P, D/A, L/C, Western Union
Supply Ability: 1,000 pcs/ week

ISO9001 SKD11 CNC Machining Steel Parts , Durable CNC Lathe Components

Description
Product Name: CNC Lathe Processing Part Material: SKD11
Hardness: HRC58~60 Tolerance: ±0.005mm
Dimension: According To Drawings Or Samples Applications: Automation Industry, Machinery Industry, Electronics Industry
Processing Types: Turning, Milling, Wire-Cutting Processing, Grinding Surface Roughness: RA0.8
High Light:

ISO9001 CNC Machining Steel Parts

,

SKD11 CNC Machining Steel Parts

,

Durable CNC Lathe Components

SKD11 Material Durable Turning Parts CNC Lathe Machining Parts Precision Shafts​



Company Profile-Toxmann.pdf



Processing & Inspection Machine List.pdf

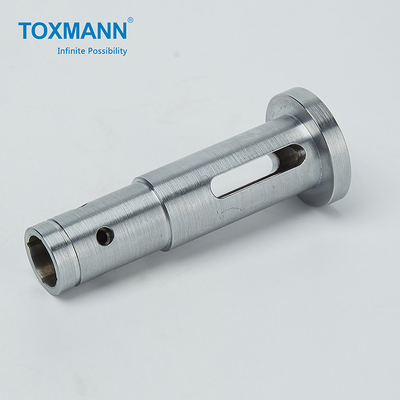

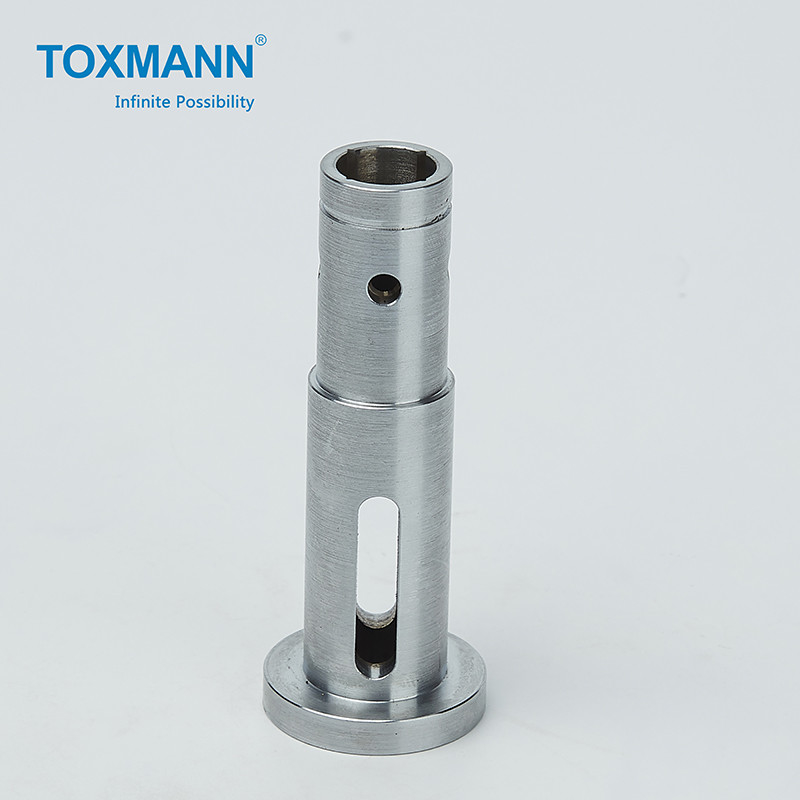

This is a customized parts for our customer. The material is SKD11, the hardness for heat treatment is hrc58-60.This precision shaft has many steps of machining, from external dimensions and tolerances to square holes. In terms of shape, we use CNC lathes and milling machines for rough machining, followed by vacuum heat treatment, and then external grinding. After the completion of the above work, the square hole is processed by line cutting machine, pay attention to dimensional tolerance during processing, and pay attention to the requirements of concentricity of parts.



In the center of the part shown in the figure, there is a prescription hole, which is processed by CNC machining centers. There are several points to pay attention to in processing this part, such as the tolerance requirement of the external dimension of the part, the roughness requirement of the part, the concentricity requirement of the two square holes and the shaft, and the smooth transition requirement of each joint of the part. Some technical requirements as followed:



Closest Tolerance:+-0.005mm
Polishness: Ra0.8
Axiality: 0.005mm
Verticality: 0.005mm



Product Information:

Manufacturer

 Toxmann High- Tech Co., Limited

Product Name

 CNC Lathe Processing Parts

Raw Material

 SKD11

Design Tools

 UG, ProE, Auto CAD, Solidworks, etc

Surface Finishing

 Chromium Plating

Quality Control

 Hardness Tester, Caliper, Altimeter, CMM, Projector, Micrometer.

Processing Machines

 Precision OD Grinder, CNC Lathe Machine, Wire-Cutting Machine

Other Service

 ODM and OEM, Customized Specification, One to One Communication

Order Process

 Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides   quotes and lead time→ Orders released by customer→ 50% advanced

 payment→ Arrange production→ QC pass→ Packing and shipping   after receiving balance payment.



Pros of Toxmann CNC Turned Parts:

1. Using high-end machines to process to meet accuracy.

2. Integrated inspection instruments to guarantee quality before shipping.

3. Raw materials and heat treatment are provided by best manufacturers, such as ASSAB, TOKAI, etc.

4. Most competitive price for each order.



Our Service:

1. Shipping with Material report & heat treatment report

2. Shipping with QC report

3. Any time welcome to visit our factory

4. Sample is free, without MOQ



Why Choose Us?

1. We have rich experience and specialize in manufacturing mold parts and machined parts for over 13 years.

2. We have perfect technical team and precision machines, which ensure to provide best service and quality to customers.

3. Short lead time of samples to impove work efficiency.

4. Professional production team and strictly quality management to meet the requirement of capacity and quality.

5. Competitive quotation, excellent service, flexible trade terms.

6. Our philosophy: customers' satisfaction is our target.

Toxmann High- Tech Co., Limited is a professional OEM/ODM mold accessories and machine parts manufacturer. We provide precision machined parts design and manufacture, mold design and mold manufacturing, injection/die-casting/stamping mold parts processing. We have a team with extensive quality control experience to help Toxmann meet customer requirements. High quality, competitive price, quick response are our core missions.



Toxmann Promise:

1. Provide the detailed production schedule for each order.

2. Offering production status with video and photos for each component.

3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.

4. Over 99% orders can meet the lead time requirement.

5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.

6. Using the first-rank raw materials which also can be traced.

7. Provide the most competitive price with the high quality and service standard.

8. The most reasonable packing scheme for all products.



Packaging:

1. Toxmann packaging is based on the highest industry standard;
2. Each part is packed independently.



Delivery (Shipping):

1. Using DHL, UPS, Fedex, TNT, EMS and SF experss to deliver products to your destination.
2. Ship products to your nearest port by sea.



FAQ:

Q1: What is difference between SKD11 and D2?
A: SKD11 is the general name of the Japanese Ministry of Industry. D2 material is the American mold steel grade, and the alloy composition is Cr12Mo1V1. However, the composition of SKD11 alloy produced in China is lower than the D2 material standard. The resistance to high temperature softening is different.


Q2: What material is SKD11?
A: SKD11 is the tool steel, die steel, and high carbon steel possessing high hardness, strength and wear resistance. Its surface is grinded precisely. It is often used for the stamping dies, plastic molds, and so on.


Q3: What is SKD11 equivalent to?
A: Equivalent Grades: GB Cr12MoV, JIS SKD11, AISI/SAE D3, DIN 2X165CrMoV12. SKD11 is the tool steel, die steel, and high carbon steel possessing high hardness, strength and wear resistance. Its surface is grinded precisely. It is often used for the stamping dies, plastic molds, and so on.


Q4: SKD11 mechanical properties?

Mechanical Properties

Metric

Imperial

Hardness, Vickers

748

748

Izod impact unnotched

77.0 J

56.8 ft-lb

Poisson's ratio

0.27-0.30

0.27-0.30

Elastic modulus

190-210 GPa

27557-30457 ksi
