Product Details:
|
Product Name: | Die Punch Pins | Material: | SKD61 Or DC53 |
---|---|---|---|
Hardness: | HRC48~52 Or HRC58~62 | Tolerance: | ±0.005mm |
Applications: | Stamping Mold, Riveting Equipment | Quality: | 100% Inspection |
Surface Treatment: | Black Plated Titanium | Processing Machine: | CNC Lathe, External And Internal Grinders, CNC Machining Center |

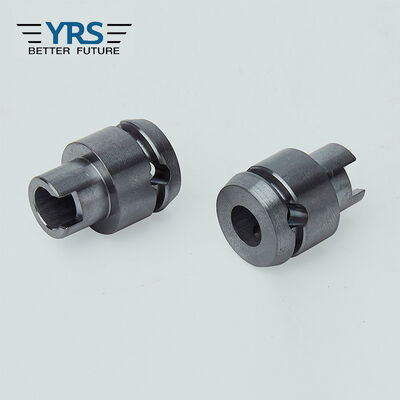

Highlight: | Black Plated Stamping Die Punches,SKD61 Stamping Die Punches,Titanium Punch Pin Set |

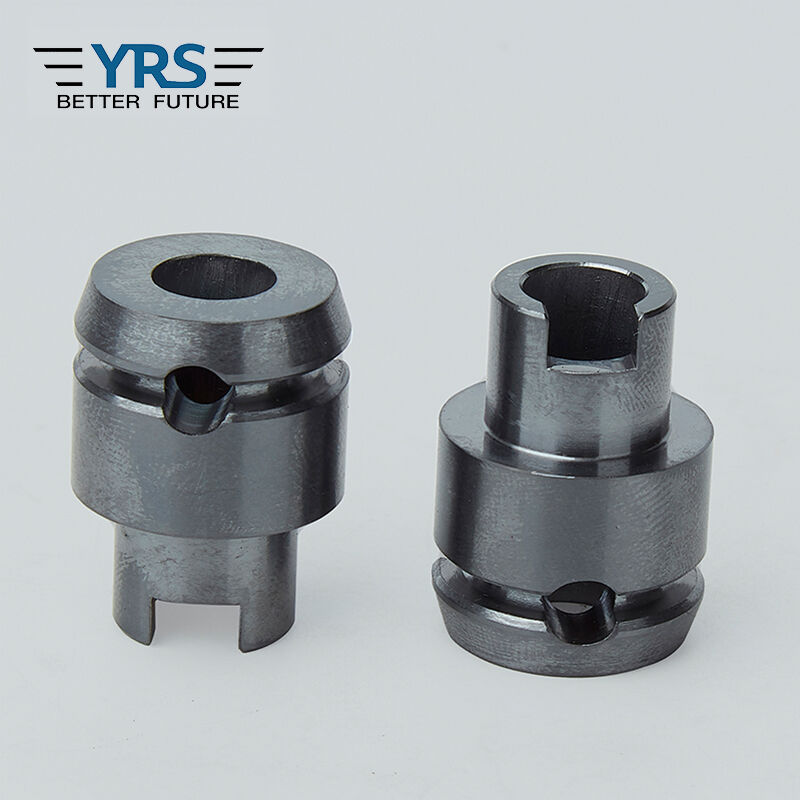

SKD61 Stamping Part Die Punch Pins For Riveting Equipment Black Plated Titanium
Processing & Inspection Machine List.pdf
This is a stamping mold part in riveting industry. The concentricity of parts shall be ±0.005mm, the finish shall be RA0.6, and the other surface shape tolerance shall be ±0.02mm.Parts inside the inner hole we use of internal grinding machine for processing to ensure the smoothness of the parts and tolerance. Parts of the flat tolerance ±0.01 mm, we use the precision external grinding machine for processing. Slot on the round is installed seal, installation requirements are high, we use the precision grinder to process to guarantee the dimension.
This kind of part belongs to high precision rivet joint industry component. The workpiece requires high strength and can withstand high impact, so we use vacuum heat treatment to protect the stability of material properties. The surface treatment is black titanium plating, which can not only improve the wear resistance of the parts, but also increase the aesthetics.
Material |
SKD61 or DC53 |
Industry Standards |
DIN, JIS, AISI, GB |
Minimum Order Quantity |
1 Pcs |
Production Capacity |
1,000 pieces per week |
Lead Time |
10~15 days after deposit |
Payment Term |
T/T, Paypal, Western Union, Cash |
Quality Control |
Hardness Tester, Callipers, Alitimeter, CMM, Projector, Quadratic Element, Mirometer |
Processing Machines |
CNC lathes, OD and NC Grinders, CNC Machining Center |
Other Service |
ODM and OEM, Customized specification, One to one communication, Free samples |
Additional |
1) Sample order and small order are acceptable. |
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC lathe machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
Related Industries: Medical, Packaging, Aerospace, Electronic and automation.
Any questions about plastic molds parts and tooling, or you want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Please do not hesitate to contact me.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
Our Quality and Lead Time Objectives:
1. Sample acceptable rate reaches to 100%
2. The qualified rate of finished products reaches to 100%
3. Delivery on time rate reaches to 100%
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
FAQ:
Q1: Can I release a sample order before mass production order?
A: Yes, we accept to make sample for customer to test. You should pay sample charges.
Q2:What is your MOQ for the orders?
A: We do not have MOQ limitation, 1 pcs is acceptable.
Q3: How do I pay for orders I released?
A: The common payments are T/T (Telegraphic Transfer), L/C and Paypal.
Q4: I have an idea for a new product, Can you help me to make it realized?
A. Sure, We are willing to work with customers to evaluate the technical feasibility of new ideas and we would advise materials, tooling and cost for our customers.
Q5: Which material is best for my component?
A. Materials’ selection depends on the application of your design and the scenario of using. We will discuss with your designers and give our suggestion.
Q6: What is the lead time of component?
A : It depends on the quantity of the orders and process. Normally, the lead time is 10~15 days.
Q7: How to proceed an order for mold parts and machined parts?
A: Firstly, let us know your requirements (send us drawings or samples)
Secondly, We will quote according to your requirements.
Thirdly, you should confirm the samples and paid the deposit for formal order.
Lastly, We arrange the production and ship the products out after inspection
Q8: How to ensure the plastic mold parts quality meet our requirement before shipping?
A : We have professional QC department to inspect all products before shipment and we can provide the quality inspect reports if you need. In addition, you can invite a third party to our factories for inspection.
Q9: How will you ship the products and how long does it take to arrive?
A: If shipped by DHL, UPS, FedEx or TNT, it will take 3~5 days to arrive. Airline and ocean shipping are your options. In addition, you can provide your forwarder’s information and we will work with forwarders to ship the goods.
Q10: What will you do after shipping?
A: We have after-sales service after you received our products, we will follow up and await your feedback.
Any question related to our products, our experienced engineers are always there for backup.
