Product Details:
|
| Product Name: | Medical Mold Core Pins | Material: | 1.2344 Or SKD61 |
|---|---|---|---|
| Hardness: | HRC48~52 | Tolerance: | ±0.005mm |
| Applications: | Injection Mold, Medical Industry | Quality: | 100% Inspection |
| Surface Treatment: | Polished, Tin, Ticn, Crn, Dlc, Titanium Plating | Concentricity: | 0.005mm |
| Highlight: | Rustproof Stainless Steel Core Pins,Antiwear Stainless Steel Core Pins,SKD61 Pin Punch Set |
||

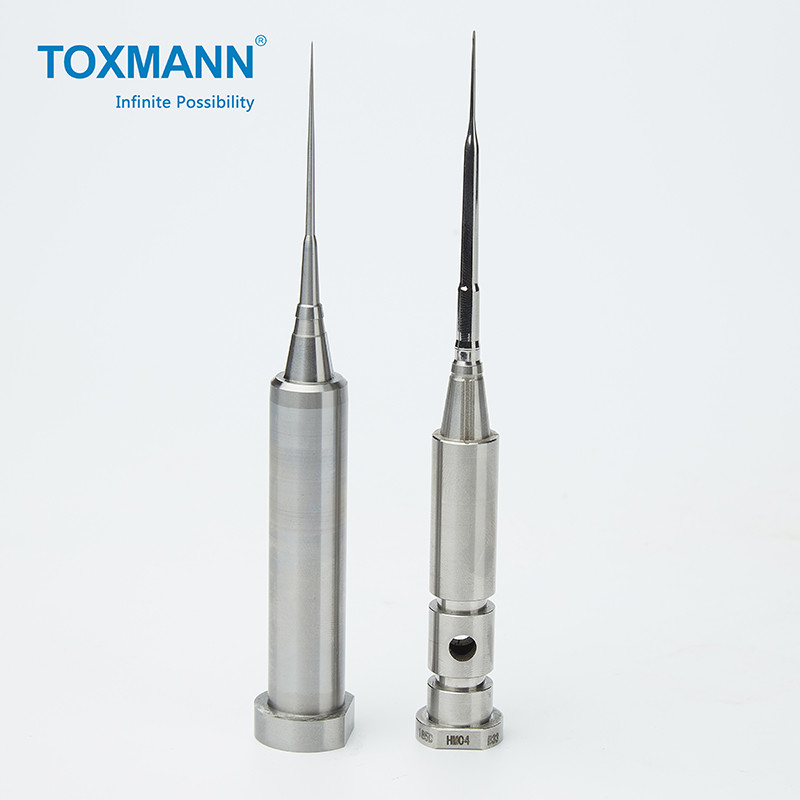

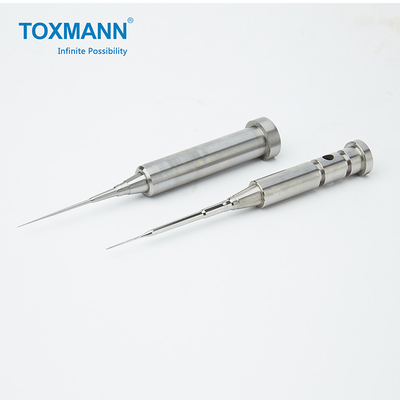

Customized Mold Core Pin Die Punch Pins Insert Pin For Medical Injection Syringes
Processing & Inspection Machine List.pdf
1. Process parts with most advanced machines to guarantee perfect quality and surface finish.
2. Technicians with an average of 10 years of experience are in charge of production.
3. All mold parts to be shipped can be attached with a quality inspection report as required.
4. Our mold parts can provide certificate of origin of raw materials.
5. Reasonable prices for samples and mass production.
| Material | 1.2344 |
| Hardness | HRC48~52 |
| Heat Treatment | Vaccum Heat Treatment |
| Service | Made-To-Order |
| Surface Treatment | Titanium Plating |
| Closest Tolerance | ±0.005 |
| Polishness | Ra0.6 |
| Axiality | 0.005mm |
| Verticality | 0.005mm |
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC lathe machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
Related Industries: Medical, Packaging, Aerospace, Electronic and automation.
Any questions about plastic molds parts and tooling, or you want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Please do not hesitate to contact me.
A Series of Toxmann Pins:
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
Toxmann is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
Our Quality and Lead Time Objectives:
1. Sample acceptable rate reaches to 100%
2. The qualified rate of finished products reaches to 100%
3. Delivery on time rate reaches to 100%
1. Provide the detailed production schedule for each order.
2. Offering production status with video and photos for each component.
3. Manufacture the parts base on customers' drawings to meet the quality requirements and industry standard.
4. Over 99% orders can meet the lead time requirement.
5. Respond to the enquiry within 24 hours and offer the quotation within 48 hours.
6. Using the first-rank raw materials which also can be traced.
7. Provide the most competitive price with the high quality and service standard.
8. The most reasonable packing scheme for all products.
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
FAQ:
Q1: What is the difference between die and punch?
A: During sheet metal forming, two different parts may be used. One part is called the punch. It performs the stretching and bending or blanking operation, while the other part is called the die block. It securely clamps the work piece and provides similar stretching bending or blanking operations.
Q2: How does a die punch work?
A: The action of a Punch & Die uses a solid metal piece, the “Punch” located vertically above the “Die”. The Die corresponds in size and shape to the Punch and is secured directly beneath the Punch. The Punch is usually, hydraulically driven to meet the Die.
Q3: How many types of die are there?
A: Combination dies are used for operations involving more than one operation on a work station. The major difference between compound dies and combination dies is that in these dies a cutting operation is combined with with a bending or drawing operation, and hence the name “combination dies”.
Q: What are punch dies made of?
A: Punch tooling (punch and die) is often made of hardened steel or tungsten carbide. A die is located on the opposite side of the workpiece and supports the material around the perimeter of the hole and helps to localize the shearing forces for a cleaner edge.
