Product Details:
|
| Product Name: | Core Inserts For Injection Mold | Material: | 8407 Or High Speed Steel |
|---|---|---|---|
| Hardness: | HRC50~52 Or Customized | Tolerance: | ±0.005mm |
| Processing Machines: | CNC Lathes, CNC Machining Centers, EDM, WEDM, OD Grinders. | Quality: | 100% Inspection |
| Surface Treatment: | Polishing, Chromium Plating | Applications: | Medical Industry, Packaging Industry, Cosmetic Industry |
| High Light: | Plastic Precision Mold Parts,8407 Precision Mold Parts,Chromium Plating Plastic Mold Part |
||

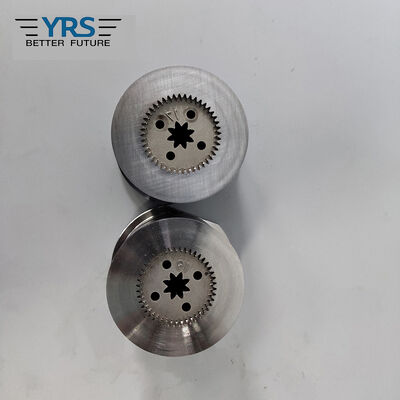

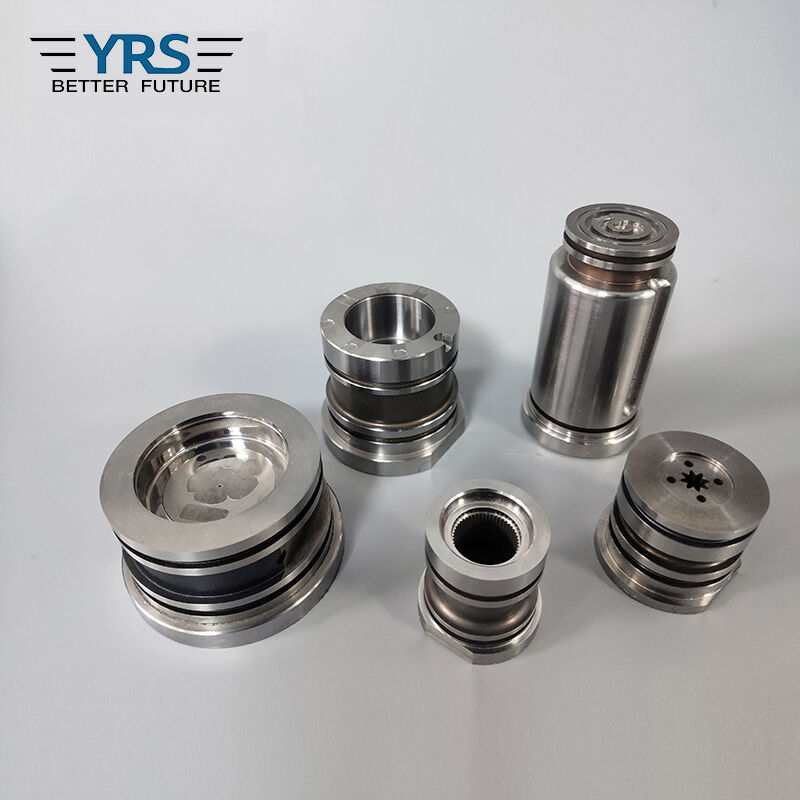

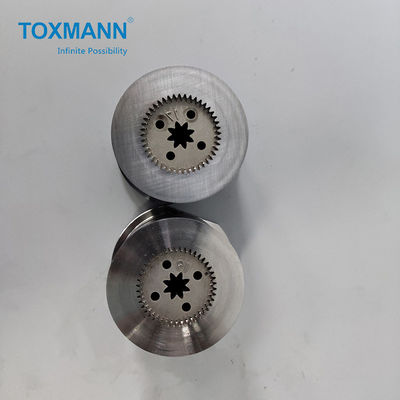

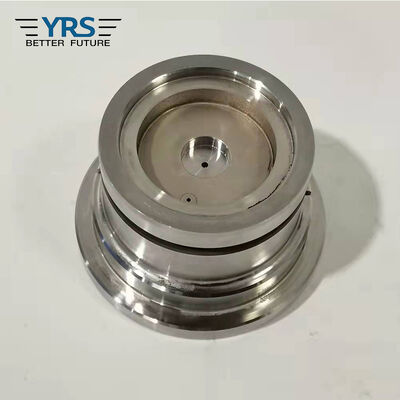

Plastic Mold Part Precision Mold Parts Mold Core Inserts Mirror Polishing Process
Processing & Inspection Machine List.pdf
An insert that is attached to the core side is called a core insert. The shape of a part determines whether an insert is attached to the cavity, the core, or both. In addition, the insert method is used to process the cavity and the core with special materials, depending on the molding material.Core is an extended or male portion of the mould which creates the internal plastic part surface whereas Cavity is a depression or female portion of the mould which creates the external plastic part surface.
Toxmann High- Tech Co., Limited is a professional manufacturer of machined parts and mold parts, established in 2009 with a total of 120 employees. We have established machined parts and mold parts two factories to meet the needs of various industries and product diversification in Shenzhen and Dongguan, China, respectively. Our products are exported to North America, Europe, Southeast Asia and other parts of the world. Meanwhile, our products are involved in various fields such as automation equipment industry, mold industry, automobile industry, medical industry, home appliance, military industry, communication industry and cosmetics industry, etc.
|
Manufacturer |
Toxmann High- Tech Co., Limited |
|
Product Name |
Core Inserts for Injection Mold |
|
Industry Standards |
DIN, JIS, AISI, GB |
|
Design Tools |
UG, ProE, Auto CAD, Solidworks, etc |
|
Material |
8407 or High Speed Steel |
| Axiality | 0.01mm |
| Verticality | 0.01mm |
|
Hardness |
HRC50~52 or Customized |
|
Surface Treatment |
Black-plated Titanium, Yellow-plated Titanium, Chrome-plated, Nickel-plated |
| Polishness | RA0.6 |
|
Application |
Medical Industry, Cosmetics Industry, Injection Mold |
|
Order Process |
Customer inquiries (provide 2D or 3D drawing)→ Toxmann provides quotes and lead time→ Orders released by customer→ 50% advanced payment→ Arrange production→ QC pass→ Packing and shipping after receiving balance payment. |
In recent years, we have introduced many high-precision processing machines and inspection instruments, such as:
Processing Machines: CNC Machining Centers, CNC Lathes, Wire-Cutting Machines, Mirror Spark Machines, Profile Grinders, Centerless Grinders, Surface Grinders and CNC Grinders, etc.
Inspection Instruments: Coordinate Measuring Machines, Quadratic Elements, Projectors and Altimeters, Concentricity Measuring Machines, Calipers and Rockwell Hardness Tester, etc.
Our devices are equipped according to the highest international standards. Complete processing and inspection equipment plus the best quality-mind are our guarantee for the excellent quality and service for customers.
Manufacturing and inspection capacity in steel, tungsten stainless, aluminum and copper materials for precision mold parts, cavity pins, core pins, punches, ejector sleeve, CNC machining parts etc.
Services: CNC lathe machining, CNC Milling, EDM processing, Wire-cutting, OD grinding, ID grinding, Surface grinding, Thread grinding, Polishing etc.
Related Industries: Medical, Packaging, Aerospace, Electronic and automation.
Any questions about plastic molds parts and tooling, or you want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Please do not hesitate to contact me.
Business Philosophy:
1. Quality is the soul of an enterprise.
2. Competitive price is our advantage.
3. Enthusiastic service is our tenet.
4. Innovation is our eternal pursuit
Quality Objectives:
1. Sample acceptance rate reaches 100%.
2. The qualified rate of finished products reaches 100%
3. Punctual delivery rate reaches 100%
Our Mission:
1.Strengthen management and continuously enhance satisfaction for customers, investors, suppliers and employees.
2. Enhance innovation capacity and contribute to sustainable development.
1. Best product quality and most competitive price.
2. Experienced technicians are in production.
3. High-end processing machines and inspection instruments.
4. Customized designs and production.
5. Excellent pre-sale and after-sale service.
FAQ:
Q1: What is core and cavity insert?
A: The core and cavity are the two halves of the mold where the hot molten plastic material is injected into the core and cavity and the gap between the core and cavity is filled with the hot molten material during the injection molding process and then hardened into the final shape.
Q2: Why core is used in mold cavity?
A: A core is a device used in casting and moulding processes to produce internal cavities and reentrant angles (an interior angle that is greater than 180°). The core is normally a disposable item that is destroyed to get it out of the piece.
Q3: What are inserts in injection molding?
A: Insert injection molding is the process of molding or forming plastic parts around other, non-plastic parts, or inserts. The inserted component is most commonly a simple object, such as a thread or rod, but in some cases, inserts can be as complex as a battery or motor.
Q4: What is the difference between core and cavity?
A: The core is the male part which forms the internal shape of molding. The cavity is the female part which forms external shape of molding.
Q5: What are the different types of cooling cavity inserts?
A: Injection Molding Cooling Types and Layout:
1. Cooling line in core /cavity inserts.
2. Connecting cooling line between mold plates and inserts.
3. Different cooling line type.
4. Cooling tower.
5. Cooling line in lifter.
6. Cooling line in slider.
